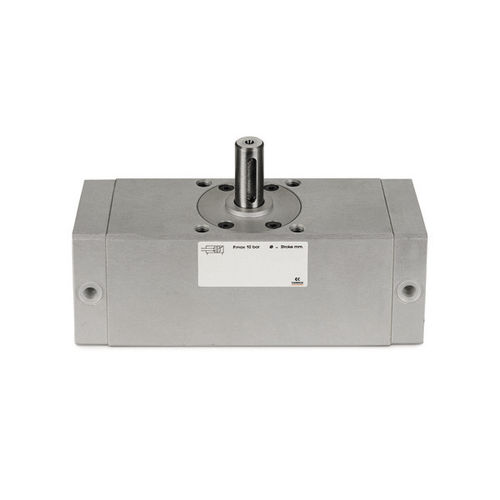

Series 30 rotary cylinders are made of a special Aluminium profile.
Their compact dimensions and clean lines give a good aesthetic appearance.
A unique wear resistant guide block gives increased service life to the unit.
Positioning gears are provided for the rotations.
On the heads there is a screw which allows rotation to be adjusted by ± 5°.

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Configuration	double-acting
Material	aluminum
Other characteristics	compact clean design wear-resistant
Torque (Nm)	2.08 - 166.34
Pressure	Max.: 10 bar (145 psi)Min.: 0.5 bar (7.3 psi)
Bore	Max.: 100 mm (3.94 in)Min.: 50 mm (1.97 in)
Rotation angle	Max.: 180 °Min.: 90 °
Ambient temperature	Max.: 50 °C (122 °F)Min.: 0 °C (32 °F)
