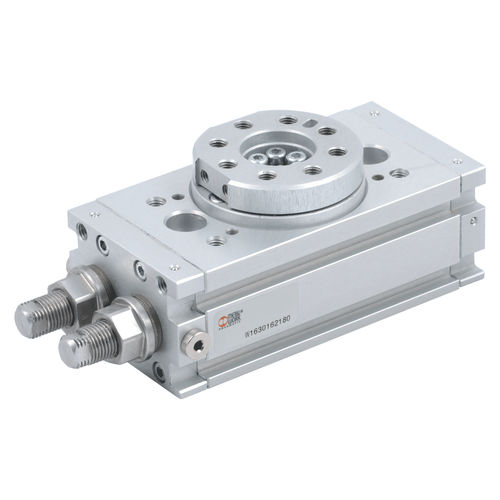

Actuator with double rack and play take-up. Angle of rotation adjustable from 0 to 180°. The R3 rotary actuator can come with a mechanical stop or hydraulic end-of-stroke cushioning.
There is a version with flange and one with shaft (for 016-20-25-30). There are slots in the body for retracting magnetic proximity sensors, two on each side. There is hole in the flange for air pipes or wires.

N.B.: We always suggest to use flow microregulators.
During the setup of the actuator, start with CLOSE flow microregulators, and open gradually till the achievment of the required speed.

Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Functional denomination: Actuator 0° - 180°
Handling bore (mm): 2x16
Size: 16
Version: Limit switch - Decel.

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	rack-and-pinion
Other characteristics	double with flange ATEX
Force (N)	74 - 560
Torque (Nm)	0.9 - 22
Pressure	Max.: 7 bar (101.5 psi)Min.: 3 bar (43.5 psi)
