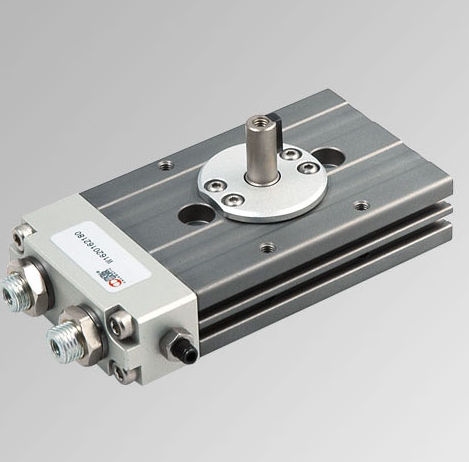

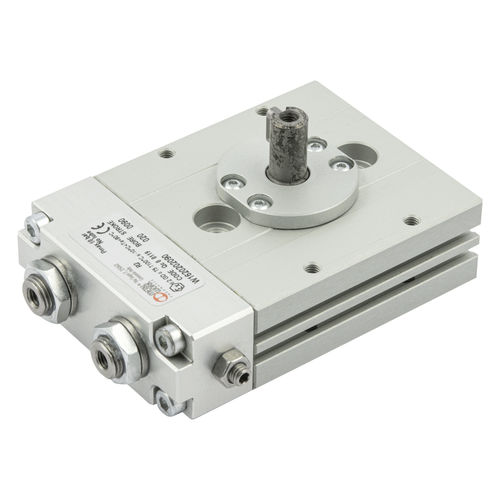

Actuator with double rack and play take-up.
Four sizes 12, 16, 20 and 25. Two angles of rotation 90° and 180°.
Stroke adjustment system for all sizes. Pneumatic cushioning for all sizes except the smallest. There are slots in the body to house a magnetic proximity sensor. Air supply, stroke adjustment and cushioning adjustment are all on the same side.
N.B.: We always suggest to use flow microregulators.
During the setup of the actuator, start with CLOSE flow microregulators, and open gradually till the achievment of the required speed.

Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items
Actuators
Functional denomination: Actuator 90° - 180°
Version: 90°-180° rotation

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	rack-and-pinion
Other characteristics	double
Pressure	Max.: 7 bar (101.5 psi)Min.: 1.5 bar (21.8 psi)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
