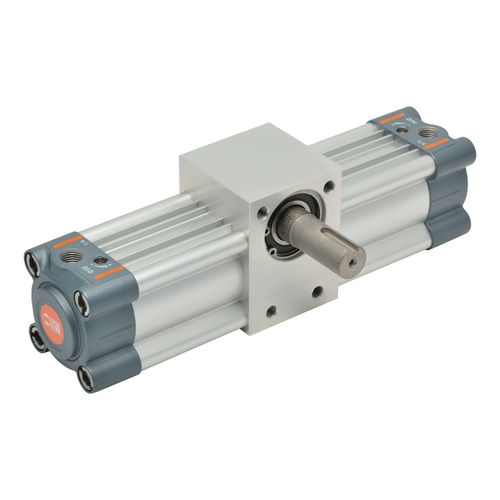

Rack-type rotary actuators in various configurations:
• Configuration with standard magnet
• Version with male pinion or female hole
• Mechanical stroke adjustment
• Special configurations on request
The central body has ISO bore holes for wall fixing using ISO pin and/or flange fittings.
N.B.: We always suggest to use flow microregulators.
During the setup of the actuator, start with CLOSE flow microregulators, and open gradually till the achievment of the required speed.

Quantity per package: 0
Minimum order quantity: 0
Unit of measure: items

TYPE
- W165 - With male pinion
- W166 - With female pinion

Parameter Name	Parameter Value
Movement	rotary
Type	pneumatic
Technology	rack-and-pinion
Configuration	double-acting
Norms	ISO
Other characteristics	standard mechanical flange ATEX
Torque (Nm)	4.5 - 300
Pressure	10 bar (145 psi)
Bore	Max.: 125 mm (4.92 in)Min.: 32 mm (1.26 in)
Ambient temperature	Max.: 80 °C (176 °F)Min.: -10 °C (14 °F)
