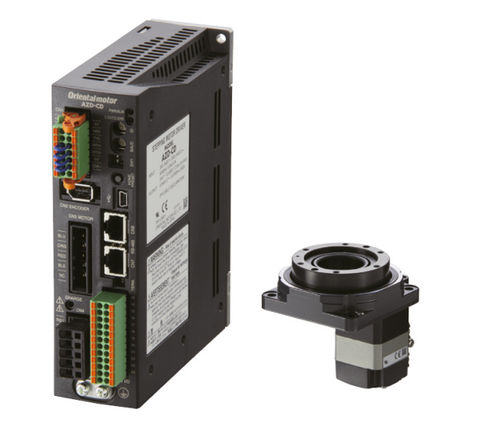

Rotary actuators with absolute encoder for AC and DC power supply

DGII Series


Features
- Absolute sensor
- High performance, high rigidity
- High efficiency, energy saving
- EtherCAT, EtherNet/IP, Profinet, Modbus RTU

Frame size: 60-200 mm
Permissible torque: 0.9 - 50 Nm
Permissible load: 100 - 4000 N
Maximum speed: 600 - 1800 deg/s
Permissible load torque: 2- 100 Nm
Options: Electromagnetic brake

Parameter Name	Parameter Value
Movement	rotary
Type	electric
Technology	stepper
Motor	AC
Other characteristics	positioning high-performance high-speed integrated high-efficiency hollow-shaft flange multi-turn with sensor option extra-rigid
Torque (Nm)	0.9 - 0.9 9 - 9 50 - 50
