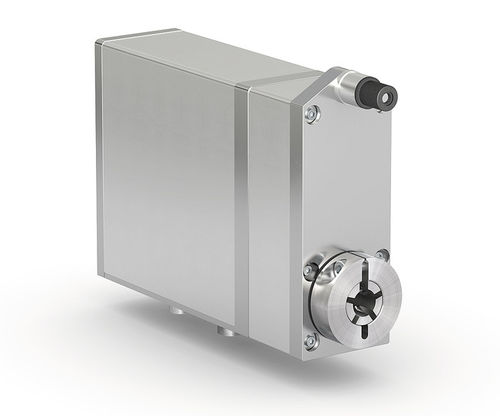

Actuator AG24 Fieldbus/IE
Industrial Ethernet
With a maximum nominal torque of 14 Nm, the new AG24 is a real power pack for format adjustment
Profile AG24 Fieldbus/IE:

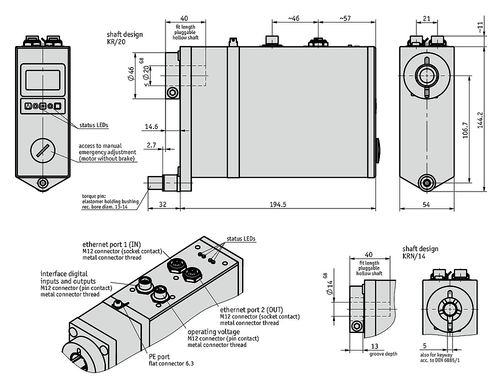

Stainless steel hollow shaft up to max. ø20 mm, feather key groove at ø14 mm
"manual" traveling without control unit by means of operator keys
Brushless 160 W, 24 V DC motor with long service life
Integrated absolute position encoder on the output shaft
Integrated positioning controller
Integrated spring-operated brake (option)
2-line LCD for target and position value and operating keys
Integrated Industrial-Ethernet-Fieldbus
M12 component mounting technology
Manual emergency adjustment with motor without brake
Mechanical data
Feature - Technical data - Additional information
Shaft - stainless Steel -
Housing - aluminum anodized -
Clamping ring - stainles Steel -

Operating mode - S3 intermittent duty: 25 % DC. 10 min. - EN 60034-1
Brake momentum - brake-induced stop momentum corresponds at least to the nominal torques of the individuel transmissions. - at ambient température = 20 5C
Weight - "3.2 kg -
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 24 V DC ±20 % - reverse polarity protected. output stage + control unit
Power input - "160 W -
Parameter st orage - 106 cydes - also applies to calibration operations
Rated current - 6 A ±5 % - at rated torque/speed {output stage)
No-load current - 350 mA ±20 % - (with transmission)
Display/display range - 6-digit LCD 14-segment. -8 mm height - dedmal points. 2 lines. spedal charaders {LED bacxlit redAvhite)

Parameter Name	Parameter Value
Movement	rotary
Type	electric
Material	stainless steel
Applications	industrial
Other characteristics	positioning hollow-shaft
Torque (Nm)	6 - 14
