Actuator AG03/1 Fieldbus
Fieldbus
High-performance compact actuator for complex positioning jobs
Profile AG03/1 Fieldbus:
Space-saving, easy mounting
Through hollow shafts up to max. ø14 mm
Brushless 50 W, 24 V EC motor with long service life
Integrated power and control electronics with inverse polarity and overload protection
Integrated absolute position encoder on the output shaft
integrated CANopen or Profibus-DP with M12 component mounting technology

integrated RS458/SIKONETZ5 interface with M8 component mounting technology

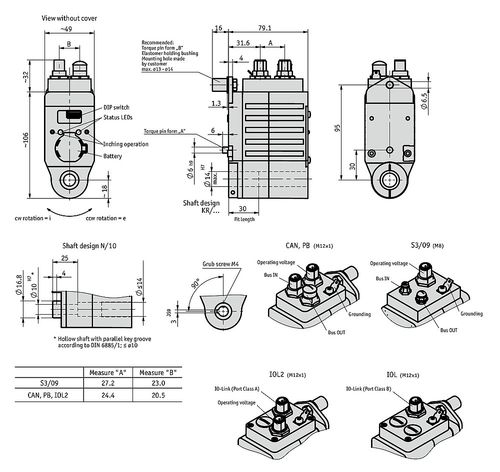

Mechanical data
Feature - Technical data - Additional information
Shaft - blacx-finished Steel -
Housing - aluminum/zincdie cast - anodized / powder-coated
Nominal torque/rated speed - 3.2 Nm at 100 rpm - i = 48
- 1.6 Nm at 200 rpm - i = 24
Operating mode - S3 intermittent operation: 25 % DC. 10 min. - EN 60034-1
Weight - '1.2 kg -
Electrical data - -
Feature - Technical data - Additional information
Operating voltage - 24 V DC ±10 % - reverse polarity protected. output stage
- 24 V DC ±10 % - reverse polarity protected. control (only CAN. PB. S3/09. IOL. IOL2)
Power input - 58 W - output stage
Battery - CR2477N, 3 V lithium. 950 mAh -
Battery service life - '5 year{s) - depending on ambient conditions
Parameter st orage - 105 cydes - also applies to calibration operations
Rated current - 2.4 A ±10 % - at max. adm. torque {output stage)
- <100 mA - at 24 V DC (control). only CAN. PB. S3/09. IOL. IOL2
Status display - two LEDs -
Keys - touch keys - for setting-up mode
Bus connection - CANopen. Profibus-DP. SIKONETZ5 - galvanic isolation of interface
- Profibus-DP - galvanic isolation of interface
- SIKONETZ5 - galvanic isolation of interface
- lO-Link. IOL - galvanic isolation between operating voltage, output stage and

Parameter Name	Parameter Value
Movement	rotary
Type	electric
Other characteristics	compact high-performance hollow-shaft CANopen
