Actuator AG02 Fieldbus
Fieldbus

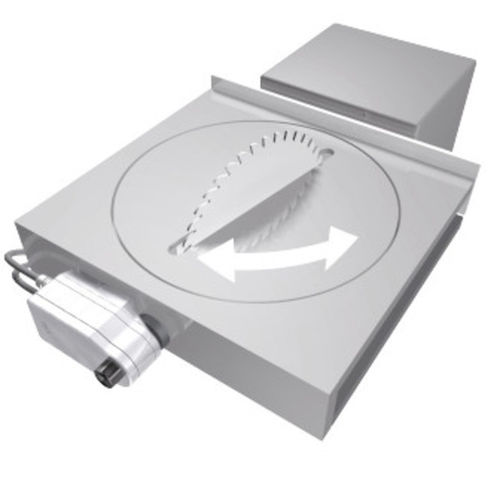

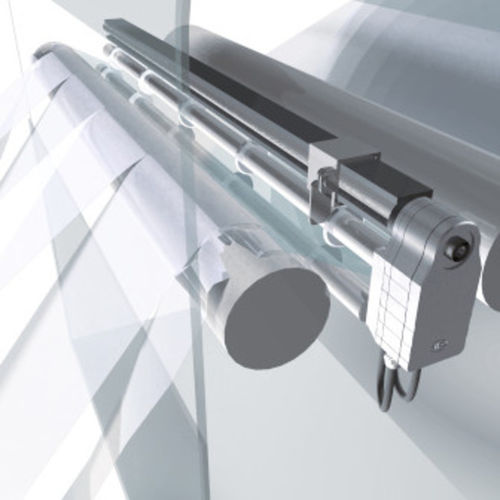

Robust and powerful actuator for complex positioning jobs
Profile AG02 Fieldbus:
Easy mounting
Through hollow shafts up to max. ø14 mm
Integrated absolute position encoder on the output shaft
Integrated positioning controller
Integrated fieldbus interface (option)
Feature - Technical data - Additional information
Shaft - blacx-finished Steel -
Housing - aluminum -

Operating mode - S3 intermittent operation: 25 % DC. 10 min. - EN 60034-1
Weight - '1.6 kg - (incrémental)
- '1.2 kg - (Fieldbus)
Electrical data - -
■ Motor - -
Feature - Technical data - Additional information
Operating voltage - 0 ... 24 V DC - reverse polarity protected
- 24 V DC ±10 % - reverse polarity protected. with FWM motor control
- 24 V DC ±10 % - reverse polarity protected. fieldbus
Power input - 70 W -
- 150 W -
Parameter st orage - 105 cydes - also applies to calibration operations {only ABM)
Rated current - 5.8 A ** (150 W me**) /** (70 W-M rneflor) % - max. load current i = 55.3 / i = 62.2
- 2.9 A - max. load current i = 55.3 / i = 62.2
- 2.1 A ±4 % {70 W-M motor) - max. load current i = 135.8
Type of connection - 2x M16 plug connectors - 3-pole. 1x pin; 7-pole. 1x pin
- 2x M16 plug connectors - 3-pole. 1x pin; 12-pole. 1x pin
- -2x M12 plug connectors (A-coded) - 5-pole. 1x pin; 5-pole. 1x socket (CAN)
- 2x M12 plug connectors (B-coded) - 5-pole. 1x pin; 5-polig. 1x socket (PB)

Parameter Name	Parameter Value
Movement	rotary
Type	electric
Other characteristics	hollow-shaft
Torque (Nm)	5 - 5 6 - 6 8 - 8 9 - 9
