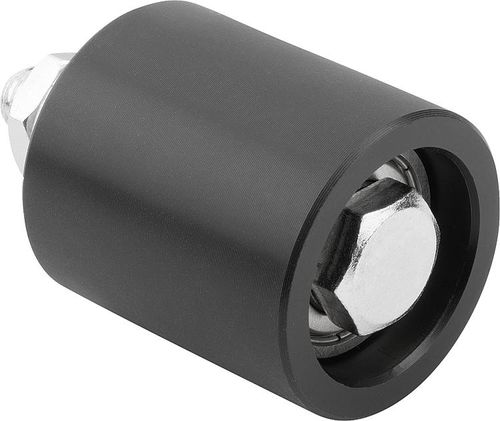

Tension pulleys

Material:
Pulley plastic PA6.
Ball bearing chrome steel.
Screw and nut steel.

Version:
Ball bearing with sealing discs 2Z-C3.
Screw ISO 4017, grade 8.8, electro zinc-plated.
Nut ISO 4035, grade 8, electro zinc-plated.

Note:
Ready-to-install tension pulleys for belts, complete with ball bearing. The ball bearings are sealed both sides, permanently lubricated and maintenance-free.

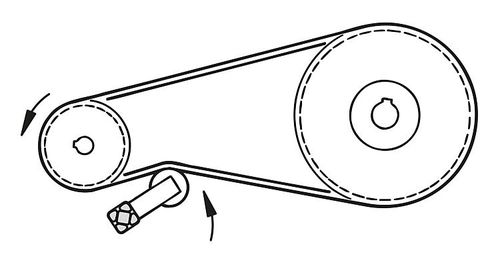

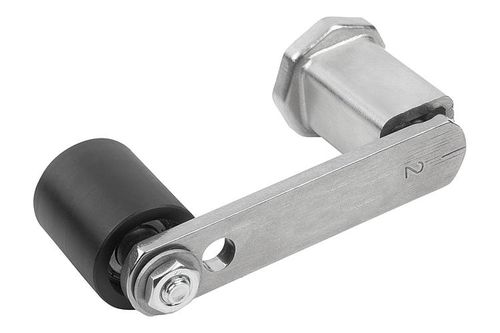

For tensioning belts on the back of the belt. The tension pulleys can be combined with all tensioning elements to form an elastic belt tensioner. Rigid mounting without a tensioning element is also possible. Can also be used as an idler pulley.

Temperature range:
-40 °C to +100 °C.

Parameter Name	Parameter Value
Type	roller
Applications	belt tension
Other characteristics	plastic
