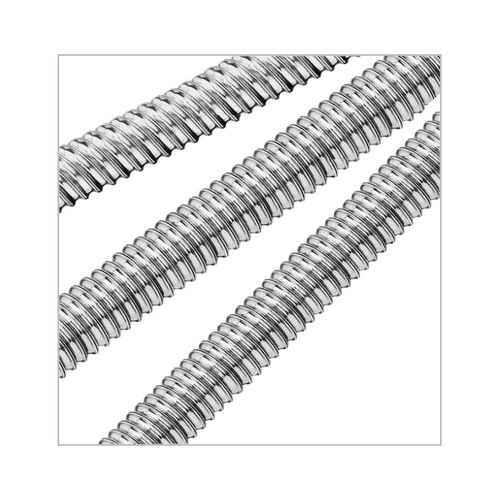

Ball Screw Shafts - Rolled, Right Hand - Standard Range
- Nominal diameter: 10 mm to 80 mm
- Lead: 4 mm to 40 mm
- Thread length: up to 5,600 mm (depending on nominal diameter and lead)

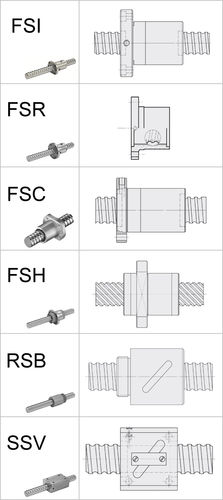

Ball Screw Nuts - Right Hand - Standard Range
- Type FSI: Flanged end, single nut, internal recirculation cap
- Type FSR: Round Flanged end, single nut, internal recirculation cap
- Type FSC: Flanged end, single nut, Super S series
- Type FSH: Flanged end, single nut, end cap
- Type RSB: Round, single nut, internal recirculation cap
- Type SSV: Square, single nut, tubes above nut body


Ball Screws - Summary of Manufacturing Capabilities

Ball screws are available in ground, whirled and rolled design. They offer a suitable solution for every application. Our manufacturing programme includes thread geometries and quality levels as presented below:

- Design: Ground, whirled and rolled
- Quality: IT1 to T7 in accordance with ISO / DIN 69051
- Nominal diameter: 10 mm to 125 mm
- Lead: 2 mm to 100 mm
- Thread length: up to 12,000 mm

Parameter Name	Parameter Value
Type	rolled
