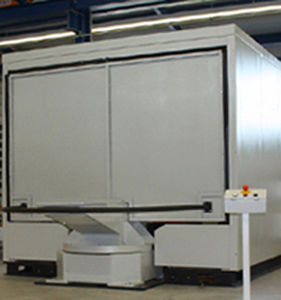

Robotic welding cell TurnFix 500

Robotic welding cell TurnFix 500

Robotic welding cell TurnFix 500

About


Mobile compact cell
Short set-up and dismantling times
Patented impulse drive
Can be used for processes such as welding, handling, assembly, gluing, etc.
Installed with robots from ABB, KUKA, Fanuc and YASKAWA
Available with one or two industrial robots
A new type of exchange system makes it possible to add another robot or another positioner (TurnRot 300) to the system without the need for complex technical resources.

Modular Construction

A new type of exchange system makes it possible to add another robotic or other positioner (TurnRot 500) to the system without the need for complex technical means.
Compact Construction

The entire production cell is built on a self-supporting base frame and forms a transport and stacking unit. The basic frame carries all components such as robots with control cabinet, positioning system, burner cleaning system, power source and safety devices, as well as all power connections.
2-Station Operation

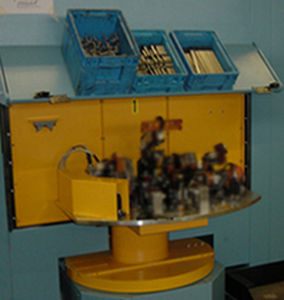

The system concept is based on the 2-station principle. While the robot is working in the first station, the operator can remove the finished welded component in parallel in the other station and then retrofit it. After loading, the operator activates the start button. If the component is finished by the robot on the corresponding working side, the change of the station is carried out and the cycle begins anew. The processing time of the robot can thus be used optimally.
In this concept, the components are mounted stationary on the table top.



PARAMETERS

Parameter Name Parameter Value
Function
  • for welding
  • handling
  • assembly
Other characteristics
compact
