configured and expanded for each specific application
compatible with all types of robots and cobots
compact design
high security standard
quick start-up
exclusive Siegmund cell design
simplified introduction into automation and series production
low initial costs and high efficiency
pre-configured cells available

Roof
front hinged access doors
manual opening for access
crane access for loading

Vent
connection available for fume extraction system
standard 150mm and 200mm spigot diameter for connection to extraction system

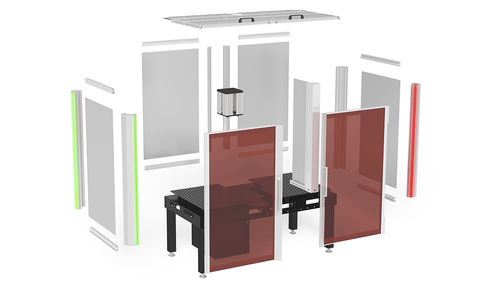

Profiles
Cell from a Siegmund modular system of aluminum profiles
with extra edging for side walls

Side wall
protection against weld spatter
opaque aluminum composite panel
alternatively welding screen according to ISO 25980 in red or alternatively green

Corner profile
fixed side walls and doors
high stability
Installation height inside the cell approx. 1300 mm

LED progress indicator
signal indicator in green / red on the right and left corner profile

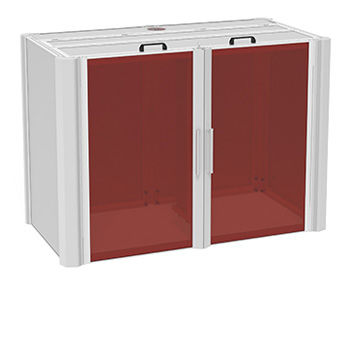

Door
double door access to cell
welding screen according to ISO 25980
position of doors configured to suit
manual opening for access

Partition wall
Aluminum composite panel
separation of cell for two operators

Console

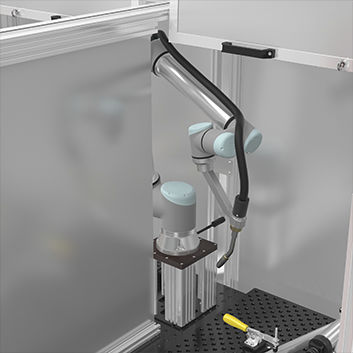

elevated position of the cobot / robot
Aluminum profiles electrically insulated with hard boarding
individual height adjustment
available in two standard sizes
individual adjustment to the drilling pattern of the cobot / robot

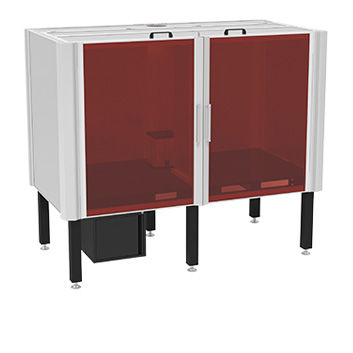

Welding Table
working area for robot and fixtures
fastening of the zero point clamping system with perforated plates and the new Siegmund clamping system
various cells and table sizes available
compatible with all systems

Parameter Name	Parameter Value
Function	for welding extraction
Applications	for machine tools
Other characteristics	compact
