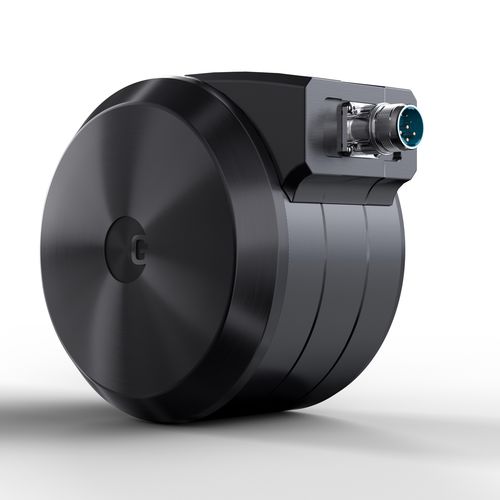

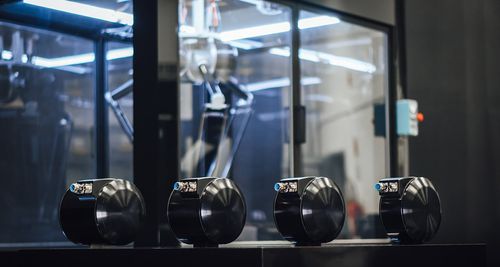

The LiveDrive® LDD direct drive motor is a high torque, compact solution designed for robots and machines in the food, packaging, pharmaceuticals, and electronics industries. Removing the need for gears, belts, or lubrication, our LDD motors simplify the drivetrain, delivering increased performance and lower total cost of ownership. LDD motors offer simplicity and improved productivity for high throughput machines.

Parameter Name	Parameter Value
AC/DC	AC
Type	induction
Voltage (V)	480 - 230
Protection class	IP67 maintenance-free
Configuration	compact with DC brake
Applications	for robotics with built-in encoder
Other characteristics	direct-drive high-torque high-precision high-efficiency low-inertia
Power (W)	665 - 665 516 - 516
Torque (Nm)	19.1 - 64.9
Rotational speed (rpm)	307 - 590
Diameter (mm)	180 - 180
Operating temperature (°C)	0 - 40
