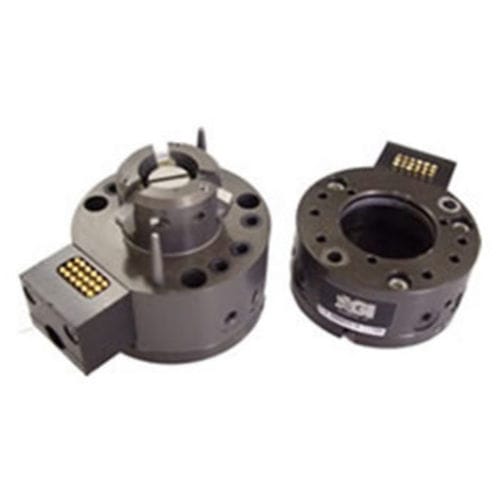

Features & Benefits
*Fail Safe - The locking mechanism remains locked even with a loss of pnumatic pressure.
*Handles High Moments as Extremely High Repeatability - The index pin gives Tool Chang Adapters the ability to handle radical moments, with high repeatablity +/- 0.001 in.
*Fast Coupling - The robot adapter can couple with the tool mounting adapter in less than 1/2 second.
*Low Deflection - The unique latching mechanism pulls the tool adapter into the robot adapter body - preloading the toll mounting adapter for excellent rigidity.
*Coupling Window - The robat adapter pulls up the tool adapter, allowing the user to couple while up to 0.4" off the face of the tool mounting plate.
Product Specifications
Design: Fail safe coupling.
Maximum Payload W: 70 lbs.
Loading Capacity:
Maximum Tension T……….419 lbs @ 0 PSI..
Maximum Comressive C…800 lbs.
Maximum Moment Mx……260 in/lb
Maximum Moment My……260 in/lb
Maximum Moment Mz……303 in/lb
Accuracy
Position Repeatability X & Y +/- 0.001 in.
Position Repeatability Z +/- 0.001 in
Pressure Range: Low = 30 psi; High = 120 psi
Temperature Range: Low = -20 F; High = 180 F
Material: High strength, hard coated
aluminum alloys and steel
Weight: .91 lbs..
Ports (Standard): (6) M5
Electrical Contacts (Optional): 18@ 5 amps each
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
robotic
|
| Type |
pneumatic
|
