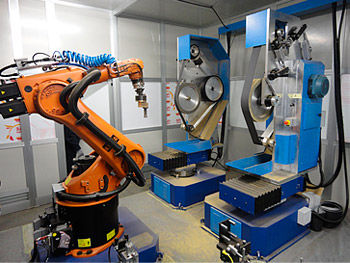

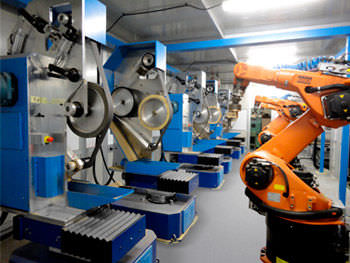

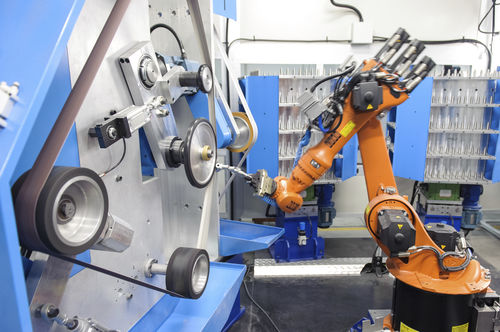

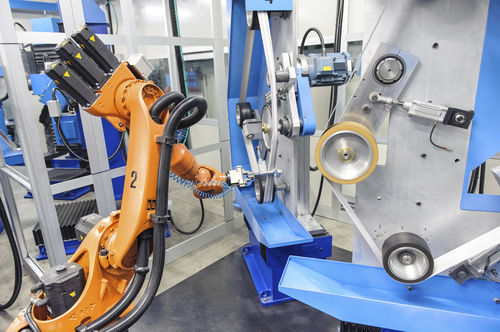

Robotised cells distinguish themselves thanks to their versatility in facing the grinding process.

Thanks to special grinding units it is possible to shift the tool needed in the process from, for example, simple grinding disks to flap wheels, rather than a scotch-brite buff.

Furthermore, each unit is equipped with a controlled axis that allows to rotate the entire grinding unit on a 0 to 180 degrees angle, with the intent to ease and speed up the grinding process, helping the robot as it needs to reach uneven surfaces or when its own arm stands in the way.

Each unit is also mounted on a linear, controlled-axis ball screw to manage the operating pressure and to compensate the flap wheels consumption, and/or to reposition the units if required.

This way, the robot settings don’t need any further modifications, as the robot itself is capable to move back and forth easing and speeding up the product processing, hence improving the entire installation’s productivity and versatility.

Each robotised cell can be designed and developed with a loading/unloading automatic system according to the nature of the specific product to process: double pallet, belt carrier system, vertical/drum loader system, just to mention some.

Our robotised cells may be single, double or triple according to the client’s processing needs.

Pros:
High production rates thanks to the combination of multiple robot units on the same working isle.
Enhanced flexibility thanks to grinding units that may be equipped with grinding belts, flap wheels, or scotch-brite buffs.
Great flexibility and movement speed thanks to the two axes each grinding unit is equipped with.

Parameter Name	Parameter Value
Function	finishing grinding
Applications	for machine tools for the automotive industry
