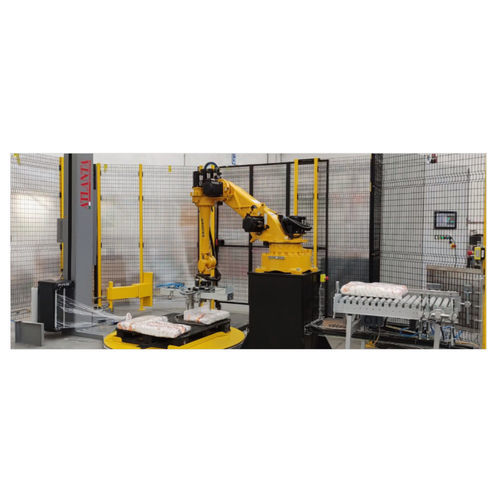

Palletizing cell with anthropomorphic robot
In area secured with barriers

Allows its particulate arm to pick up the cases it receives from a finish line and place them on the pallet.
The operator can select a palletizing process adapted for each load. System that allows a great variety of different configurations, which makes it deal for finishing lines with different formats.

Standard machine
Axis:6 (J1 to J6)
Engines: AC Servo Motor
Load (Including gripper or claw) Depending on application
Maximum reach 2050 mm.
Repeatability: +- 0.03 mm.
Weight: 560 Kg.
Power supply: three-phase 380V AV, Max. 2,5 Kw.

HANDLING CLAW
Specific claw design for each use.
Standard machine
Axis:4 (J1 to J4)
Engines: AC Servo Motor
Load (including gripper or claw) depending on application
Maximum reach 3143 mm.
Repeatability: +- 0.25 mm.
Weight: 1940 Kg.
Power supply: Three-phase 380V AV, Max. 13,2 Kw.

HANDLING CLAW
Specific claw design for each use

Parameter Name	Parameter Value
Function	palletizing
