Pack cell

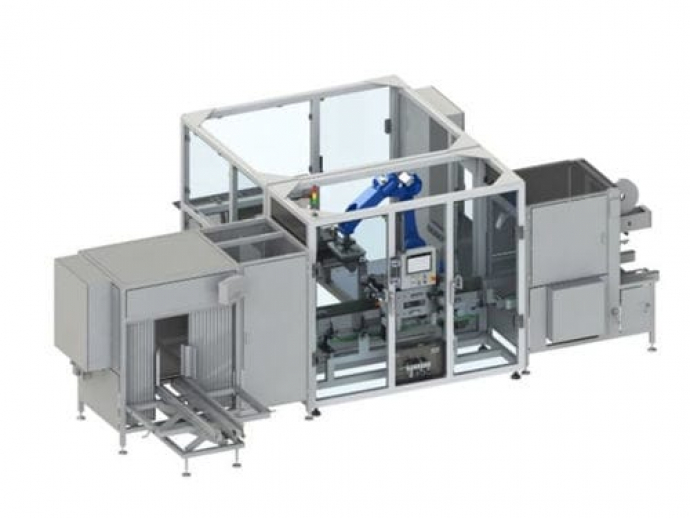

Our robot cell type VR-K is perfectly adapted for packing your products and supplements into solid boxes or corrugated cardboard boxes.

Flat-lying cartons are taken from a magazine, erected and provided for loading.

Inline or via a magazine, the products and supplements are inserted into the box or carton automated. Before the insertion, each component can be checked with a scanner.

If there are several products per box, it is possible to pre-group them automated, depending on the packing pattern.

Additionally, encoding or labelling can be executed.

The box is locked with an attached flap with plug-in closure or separate cover/slipcase, optionally with tamper evident label.

Due to the application of a 6-axis robot that accepts all tasks, a very compact and space-saving design is created.

Fields of application :

• in all industries
• primary and secondary packaging
• operation as stand-alone solution for the implementation of a complete packaging process
• operation integrated inline within production line
• for big format variety with short format change time

Performance/technical data :
• up to 100 solid boxes/min
• up to 15 corrugated cardboard boxes
• repeatability: 0.1 mm
• format change in the minute range
• cell size depending on application and product -/box size
• flap lock with adhesive tape or hot glue
• single or group packaging
• various packing patterns and orientations
• industry-specific and individually matched gripper systems

Parameter Name	Parameter Value
Function	loading packaging
Other characteristics	compact
