Robotic milling cell

Robotic milling cell

Robotic milling cell

About

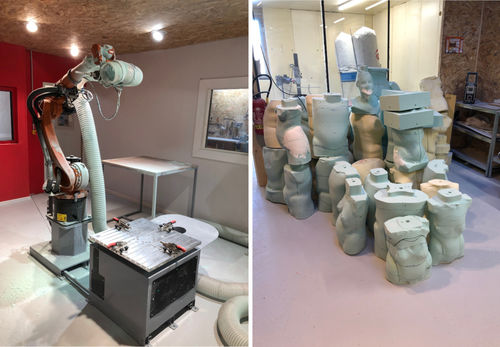

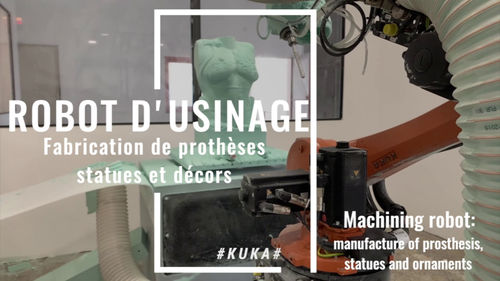

The 6-axis robotic CNC Machining Cells are industrial systems for machining, drilling, cutting and finishing with 6-axis Kuka robots.

6-axis robots are more and more used in milling activities because they act like a large-sized machine tool, with high accuracy combined with high movement speed. And the investment cost is lower than with classical large-size CNC machines.

Moreover, a simple tool change allows to realize a large number of tasks:
- Drilling, cutting, deburring, polishing
- Milling, grinding, sanding, finishing
- Modelling

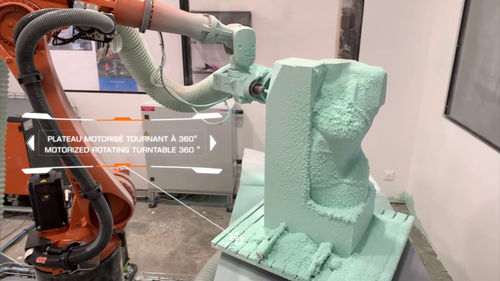

The cells are fully secured. Robots are equipped with a spindle to work on soft materials (foam, plastics, wood) and/or low hardness (aluminium). Learning how to use the robot is similar whatever the material used.

Centers wishing to work on metals or specific processes (e.g. large wooden parts) can consult us for specific cells with specific robots.

Standard cells:
- 1100 to 2700 mm reach robot
- Spindle power from 800W to 7000W, high frequency
- Other custom configurations
- Tool-changers, Tool-holders and tools defined according to applications

Environnements logiciels CFAO compatibles (Autres sur demande):
- Delcam + Powermill Robot Pro
- Rhinoceros + MadCAM + Rhinorobot

Software environment for ERM robotic machining cells:
- Delcam – Powermill Robot Pro
- Rhinoceros – MadCAM – Rhinorobot
- Sprutcam



PARAMETERS

Parameter Name Parameter Value
Function
milling
Applications
for machining centers
