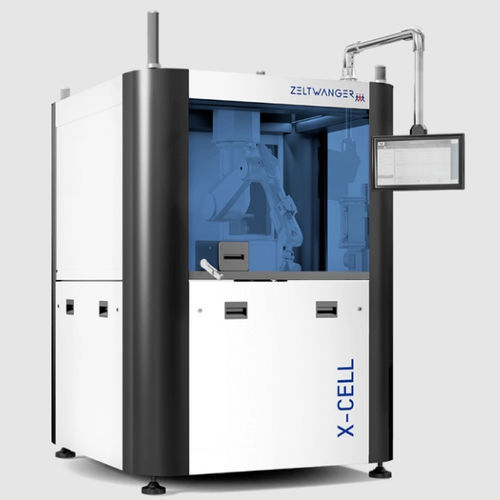

The robot-based machining cell X-CELL LRA from ZELTWANGER completes assembly, machining, laser welding, testing, and marking tasks quickly and reliably.

Thanks to its modular structure, the X-CELL LRA can be used partially and fully automatically as a flexible stand-alone cell or incorporated into an in-line system. This enables a flexible number of processes can be integrated and individually designed.

ADVANTAGES
Modular platform
Scalable system
Adjustable degree of automation
Innovative design
Service access on 4 sides
OPC UA interface
Can be an integrated or stand-alone system
PRODUCT FEATURES
49 standard sizes:
Scalable lengths and widths from 1,200 to 2,400 mm

All laser types:
Multi-kW power, various wave lengths (IR, UV, visible), laser class 1, test class T1

MODULAR PLATFORM
Adjustable size
Specially designed for laser applications
Laser and light-resistant
Accessible at several points along the roller shutter system
Process monitoring via camera system or laser protective screen
Laser protection class 1
Can be integrated into production lines via the clearly defined interfaces of the X-CELL
Specially designed for new industrial concepts (matrix/island manufacturing)

MODULAR WORK AREA
Modular integration of process modules and handling systems
Installation possible via slots on the sides
Installation possible over corner pillars
Integrable process modules:
– Assembly
– Functional testing
– Leak testing
– Laser processes

MODULAR COMPONENT FEED
Manual feed via drawers
Belt circulation with laser shutter
Belt circulation with lifts
Multiple cells can be linked
Feeding possible via rotary indexing table

Parameter Name	Parameter Value
Function	laser welding handling assembly machining feed test
