Flexible, automated laser welding cell for thin sheet or foil joints

The highly efficient fully automatic machine is designed for overlap welding of thin sheets and foils in series. The max. permissible component dimension is approx. 600 x 400 mm. For the welding of sensitive materials there is the possibility of an improved argon cover incl. root protection. An adjustment of the seam geometry (e.g. for process stabilisation) can be achieved through the targeted use of the scanner's wobble function. The OCT inline process control detects faults (e.g. binding faults and shoot-through). Defective components are sorted out.

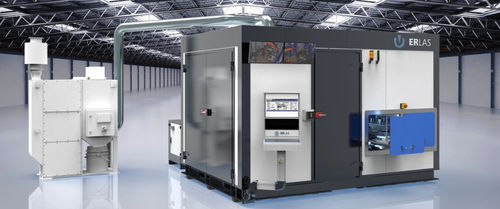

Welding cell with fibre laser (e.g. IPG YLR-500-MM)

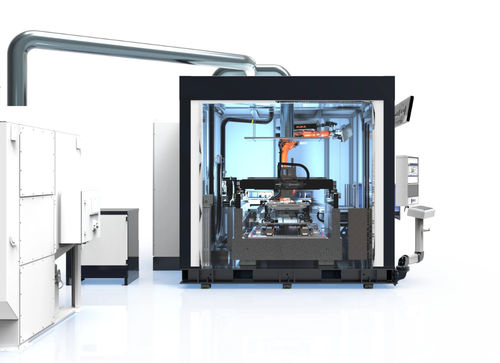

MobiCell cell on welded base frame
Component feed and discharge of the sheet metal parts in the stack via drawers
Robot for thin sheet handling (e.g. KUKA KR16)
Variant-flexible special gripper with suction lifting technology
Sensor-supported component scanning and recognition
Scanning welding optics for seam design
Focus diameter < 100 µm
Integrated OCT inline process monitoring (e.g. IPG LDD-700)

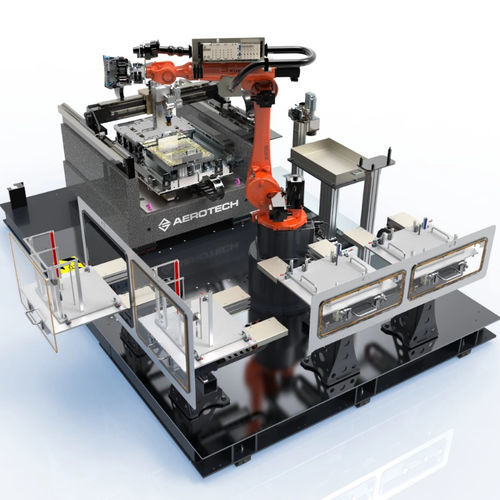

Highly dynamic, high-precision 3-axis gantry with linear direct drives (position accuracy better than 0.01 mm) on granite base
Hold-down device easily exchangeable via pull-out
Use for unmanned production
Laser-safe cell

Parameter Name	Parameter Value
Function	laser welding feed
Other characteristics	sensitive
