Inline inspection of complex geometries.

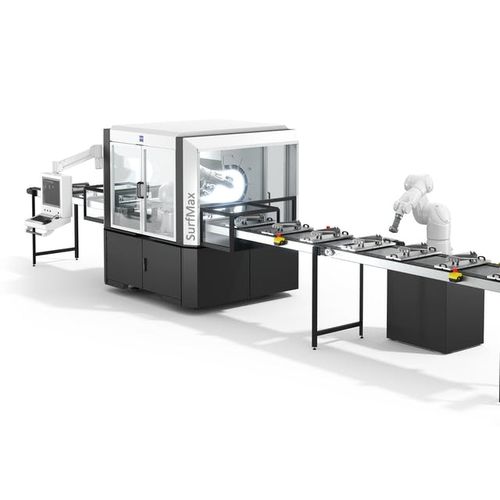

ZEISS SurfMax R Series is designed to provide inspection of complex part geometries or multiple variants of a part within a given part family. Automatic robot handling allows for consistent and optimized part alignment within the inspection tunnel for accurate and repeatable inspections.

Your advantages:
- Available in different sizes
- Simple and automated operation
- Customizeable to your needs

Available in different sizes
Two models are available depending on the size of the parts for inspection: ZEISS SurfMax R150 for parts with a width up to 150mm and ZEISS SurfMax R250 for parts with a width up to 300mm. Isolated point-like defects with a lateral size of 25 μm can be consistently detected by ZEISS SurfMax R Series.

Customizable to your needs
Customizable options to fit your existing workflows are available including infeed and outfeed material handling of parts, custom end-of-arm tools, fixturing, pallets, trays, and sorting and verification systems to indicate part types, part and result tracking by serial number.

Parameter Name	Parameter Value
Operational mode	robotic
Applications	for production
Type	surface for defect detection
Other characteristics	in-line
