Robot for automating the machine operation
Moveable as Needed

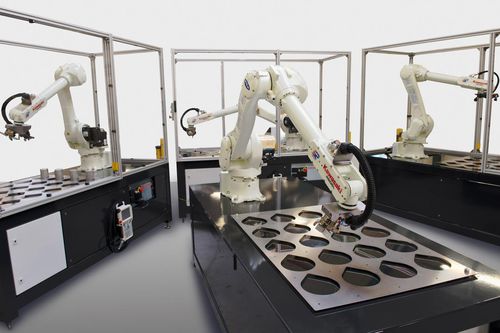

BILA RoboPower is a compact and moveable cell that can be easily moved using a pallet jack or a truck. RoboPower can be placed in between several CNC machines and can be set for production in the course of 20-30 minutes.

The main frame/stand of RoboPower is heavy enough to make it stable without being bolted to the floor. If the cell needs to be moved frequently, two zero point plates are used, which are attached to the floor.
Functional Design

The distance from the edge of the cell to the chuck or vice can be up to 1,100 mm depending on the height of the CNC machine. Thanks to this, in most cases the cell can be placed away from the CNC machine without having to move the robot cell.
Programming

The combination of parametric programming and block teaching (operator programming) makes it possible to quickly change items (5-10 min) while at the same time allowing the operator to do new programming and to use the cell with other machines.
Focus on Small Batch Volumes

During the development of RoboPower, there has been great focus on being able to match the Danish subcontractors’ needs of small batch volumes. BILA RoboPower is therefore also attractive to companies handling small batch volumes because of its short run-in time.

Parameter Name	Parameter Value
Function	handling
Applications	for machining centers
