The IBOD System: Intelligent Box Opening Solutions
The Intelligent Box Opening Device (IBOD) is an inline, pass-through box opener for automating manual box cutting operations. The IBOD has built-in intelligence, measuring the size of every incoming case to automatically find the programmed cut lines. Boxes can be fed in pre-set size order or in mixed order without the need to run batches of the same size. The IBOD is fully programmable and comes in two variations. The IBOD ONE is capable of cutting the top cases at rates up to 450 cartons per hour, and the IBOD DUO is capable of opening up to 750 cartons per hour.

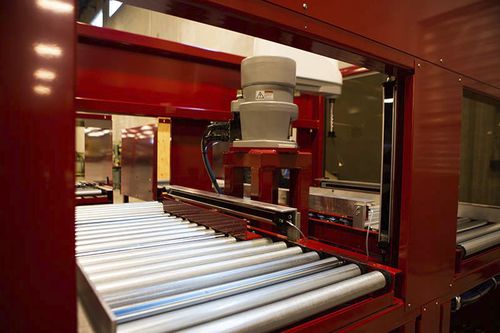

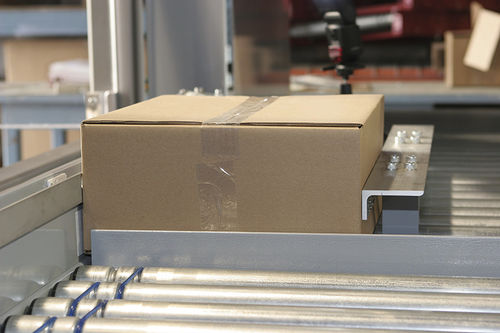

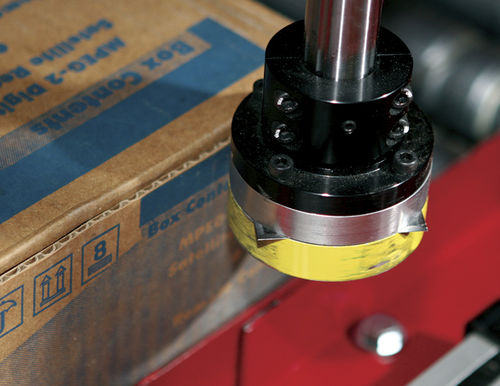

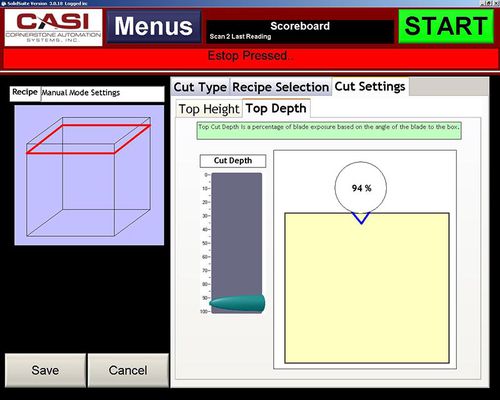

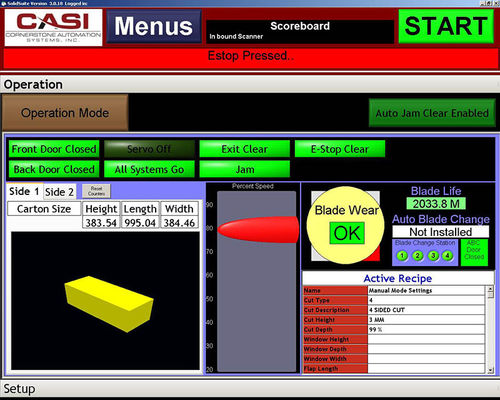

The IBOD is available in three main cutting configurations: box top, front pick window, and tape seal cuts. It is completely automatic, self-feeding, and self-aligning. The IBOD uses photo optic and linear displacement measurements to derive the dimensions of each box as it is automatically captured and positioned for cutting. A programmable motion device transforms the prescribed cut pattern to each box size. Blade stops and a box snugger are used together to give the cutting robot a squared and stationary target. The IBOD robot then uses software-controlled automation to cut boxes according to precise specifications defined by the customer.

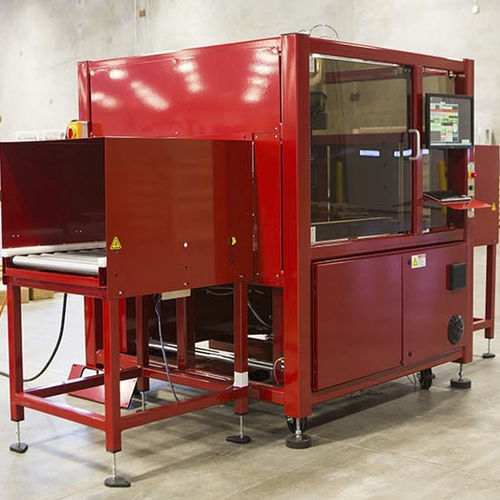

The IBOD features heavy welded steel frame construction with main frame components fabricated from 100mm welded steel tube with heavy gauge steel panels and guarding. The front side panel and access door is 18mm thick acrylic for rigidity and safety.

Why automate box opening?
Manual box opening can be slow and labour intensive, while working with knives can result in minor accidents, cuts and lacerations for workers.

Parameter Name	Parameter Value
Function	for box opening cutting
Applications	for the food industry for the electronics industry for the pharmaceutical industry
Other characteristics	high-flexibility
