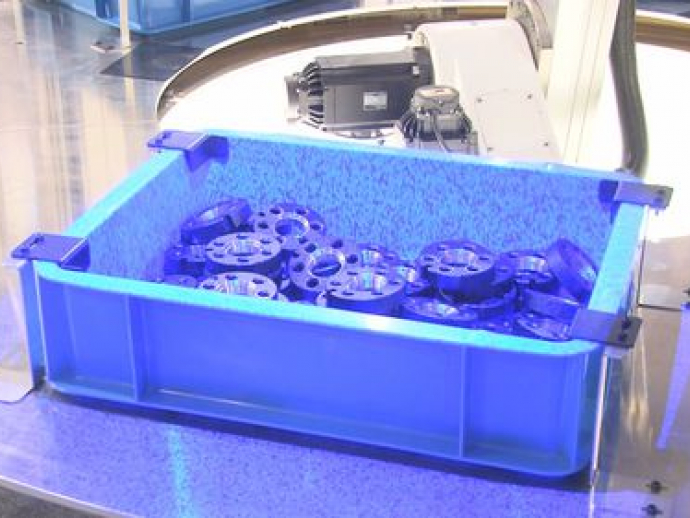

Bin-picking, without the fuss

To automate bulk picking, TSVision3D incorporates two integrated, high-speed stereo cameras that are capable of 30 frames per second for continuous, real-time 3D images. The camera completes image capture, processing and parallax operations to identify items’ positions and the vision software adds easy model registration without requiring complex CAD data.

3D vision allows robots to account for unforeseen variables in their work environment, to complete more than one task without reprogramming and to be used in a broader range of applications. It's ideal for uses where objects aren't uniform or lack CAD data, like fruit or vegetables. 3D vision eliminates the risk of error due to object location and improves robot flexibility and speed compared to "blind" robots in pick and place tasks.

Want to find out more? Check out this introduction to robot image recognition software.

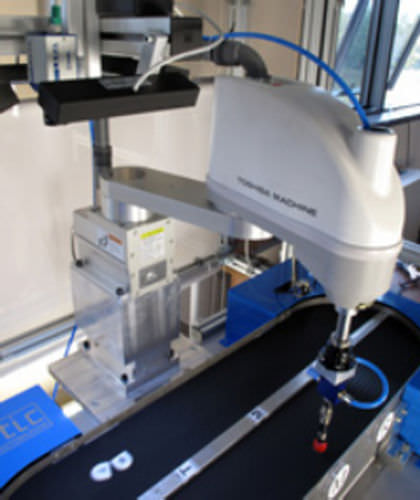

This 3D vision software can be intergrated with a 6 axis robot arm, for fully automated quality control and inspection.

Product Features & Benefits

TSVision3D was developed and designed so anyone can understand and use it — a stark contrast to previous 3D vision technologies in industry. This approach to 3D vision combines the latest vision system technologies and software to overcome stumbling blocks previously experienced with 2D vision systems. TSVision3D makes automated bin-picking a reality, even for smaller volume and highly variable applications

Easy setup

Easy model registration: 3D-CAD data not required
Easy calibration and box detection function (box size and height are automatically detected.)

Parameter Name	Parameter Value
Applications	industrial for robots
Function	visual guidance
Options	3D
