functions reduce robot setup time.

1.Auto calibration function

By simply registering 3 or 4 capture coordinates with the PV260, you can easily convert the camera's coordinate system to the robot's coordinate system.
2.Teaching support function

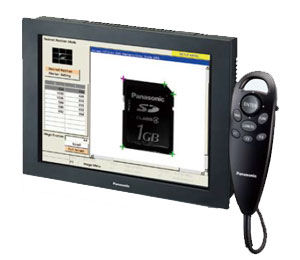

Improving on previous teaching operations that were carried out while manipulating a dedicated robot pendant, robot teaching can now be done on the PV260 setup screen while viewing the captured image. Intuitive teaching can now be achieved using keypad operation.
3.Robot tool offset function
By simply registering two coordinates for the tool installed on the robot, the tool's coordinate system can be automatically calculated and converted to the robot's coordinate system.
4.Direct communication function
Direct communication is possible with different manufacturer’s robot. PLC programming time can be reduced, because communication can be achieved by simply selecting the robot maker and type.

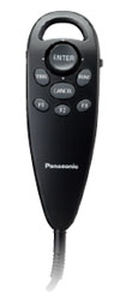

Robot can be operated from keypad.
Robot can be moved using keypad operation. Adjustment of capture position is easy with features such as auto calibration and teaching support.

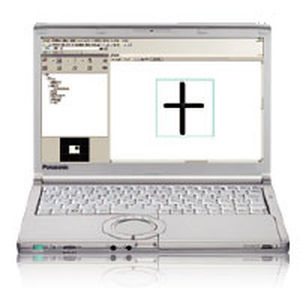

PVWIN260 setup software
Robot vision inspection result can be replicated on a PC.
The continuous simulation and data logging functions facilitate setting data creation, corrections and verifications.

Parameter Name	Parameter Value
Applications	for robots
Function	monitoring
