PLR negates the need for precision racks or manual parts handling
Cost-effective, stand-alone device connected directly to the robot
The unique combination of 2D and 3D imaging techniques provides the reliability and flexibility needed for problem-free material handling operation
The functions for robot alignment and gripper position correction make it easy for the integrator to work with PLR
Web-server-based UI simplifies configuration and maintenance work
A device installed in production can be replaced in less than 15 minutes
Combining results from multiple devices allows even parts without defined features to be located

Accurate part localization for reliable robot handling

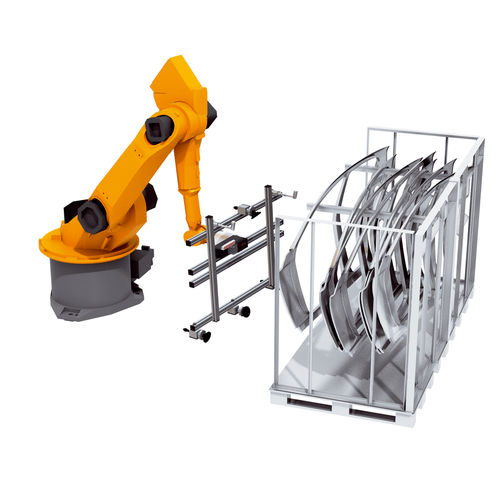

PLR is a sensor system designed for robotic handling of parts in carriers. It is a stand-alone device that comes complete with everything needed for easy setup, simple integration with the robot, and swift maintenance of the system in operation. The system is operated via an integrated web server and can be set up in no time at all. It combines 2D and 3D vision technology to provide a unique solution that can be used whenever reliable material handling is essential, even under varying conditions. PLR is factory-calibrated with preloaded software, meaning it is ready to use right out of the box. Installation and configuration of the device can be accomplished in only a matter of minutes. Now PLR is ready for operation.

At a glance
Precise and rapid part localization
Combined 2D and 3D measurement
Robot gripper correction calculation
Web-server-based user interface
Tools for easy integration with the robot
Combination of multiple devices possible

Parameter Name	Parameter Value
Applications	for robots
Function	visual guidance
Options	3D stand-alone
