Our production riser tensioner units prevent the production riser system buckling under compressive loading from self weight and to compensate for ocean currents, waves, and relative movements between the platform and the riser.

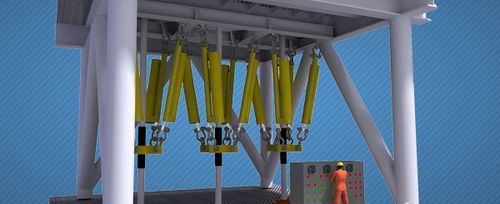

Their design employs the hydropneumatic principle and robust and reliable components. The system includes the production riser tensioner units and a control panel. The PRT125 model has a maximum rated tension capacity of 125 t and is designed to accommodate the most common production riser ODs. The control panel also features a panel for monitoring the operation of each production riser tensioner unit.

Specifications

Adjustable tension
Low maintenance requirements
Remote monitoring of the tension and fluid levels
Relief valves to protect the accumulators and tensioner cylinders from overpressure
Full tension capacity even if one cylinder/accumulator unit is out of service
Carbon steel piston rod coated with a nonporous layer with corrosion resistance
Easy and reliable shackle suspension at both ends of the cylinder
Monitoring signals easily available for readout by the driller in the drilling control room
Each cylinder equipped with a cushioning device at the rod end (extended) to protect the cylinder if unintentional movement occurs

Parameter Name	Parameter Value
Applications	riser
Type	hydraulic
