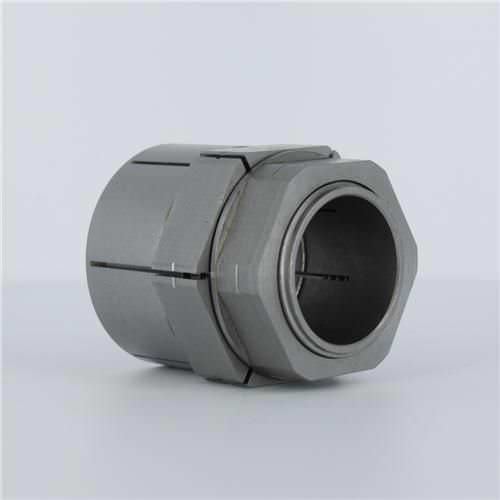

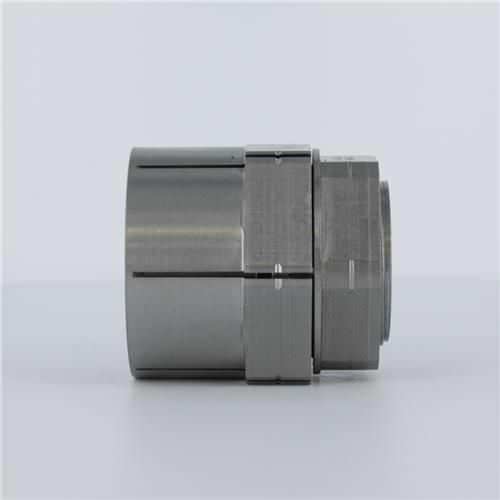

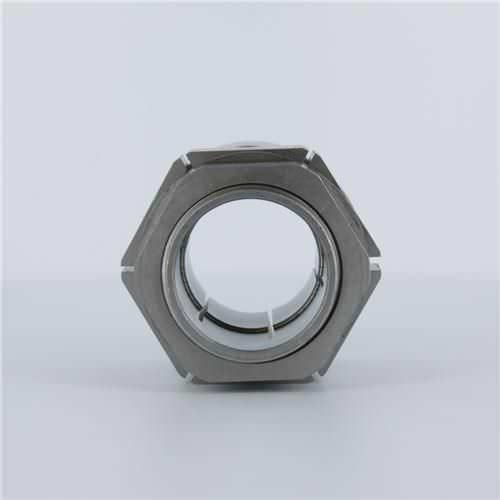

Rigid coupling Trantorque GT 28mm

Rigid coupling Trantorque GT 28mm

Rigid coupling Trantorque GT 28mm

About


The Trantorque GT Series 28mm Keyless Bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 28mm in diameter by means of a mechanical interference fit and transmits up to a maximum 434 Nm of torque.

Best Suited For: Applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut.

Trantorque GT Series 28mm Keyless Bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending, and/or radial loads. Designed with an external counter torque nut for easier installation, by allowing the system to be held from rotating during installation. The Trantorque GT Series Keyless Bushing has exceptional concentricity while maintaining the ability to accommodate bending loads. There is limited axial movement during installation. All Trantorque units use a single hex nut for speed and simplicity of installation.

• Designed with external counter-torque flange
• Exceptional concentricity and ability to accommodate bending loads
• Limited axial movement during installation
• All Trantorque units use a single hex nut for speed and simplicity of installation

Features of Fenner Drives Keyless Bushings:

• Ability to transmit higher torques than keyed connections
• True zero-backlash
• Less equipment downtime
• Ability to mount over existing keyways
• Complete axial and radial adjustability
• Simple installation, adjustment and removal



PARAMETERS

Parameter Name Parameter Value
Type
rigid
Product applications
  • transmission
  • shaft
Other characteristics
  • torque
  • zero-backlash
  • self-centering
  • high-torque
  • locking collar
Installation system
sleeve and shear pin
Torque (Nm)
0 - 466
