medium capacity
not self-centering, not self-locking (self-releasing)
fixed axial hub position during tightening
two thrust rings with double taper design
low axial dimension
tolerances: shaft h7-h11; hub bore H7-H11
surface finish of shaft and hub bore Ra < 3.2µm

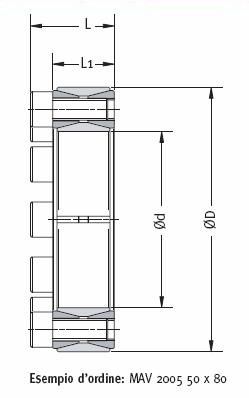

Composition

slotted outer ring
double taper front thrust ring, with integrated pull-out threads
double taper rear thrust ring
set of socket head screws, grade 12.9.
zinc plated screws indicate the position of pull-out threads

Parameter Name	Parameter Value
Type	rigid locking device
Product applications	shaft
Other characteristics	self-centering double
Installation system	flange
Torque (Nm)	300 - 300 0 - 0
