medium capacity
self-centering, self-locking
fixed axial hub position during tightening
single taper design
tolerances: shaft h8; hub bore H8
surface finish of shaft and hub bore Ra < 3.2 μm

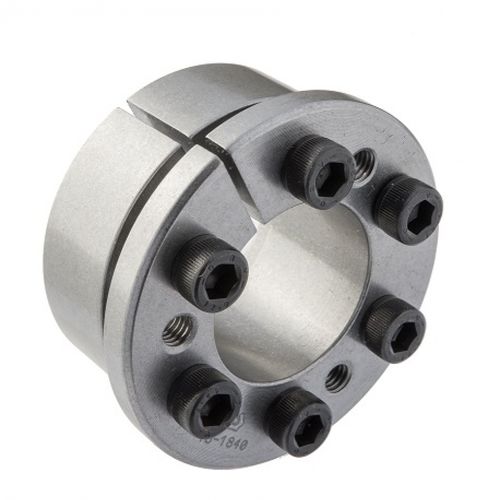

Composition

slotted inner ring, with integrated push-off threads
slotted outer ring
set of socket head cap screws, grade 12.9

Parameter Name	Parameter Value
Type	rigid expandible axle
Other characteristics	self-centering
Installation system	flange
Torque (Nm)	68 - 68 0 - 0
