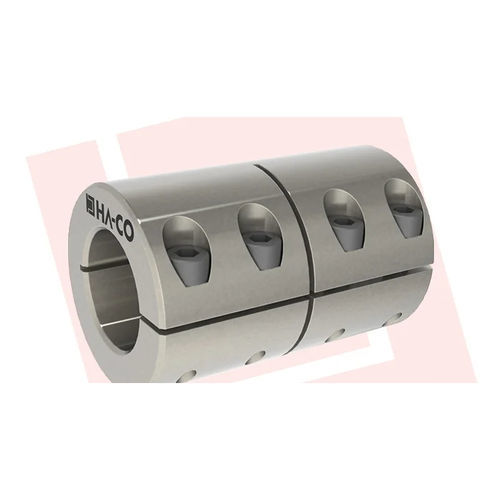

The rigid couplings are used if there is no displacements or misalignment of the shafts to be connected.

Inner-Ø up to 80mm, Special designs on request
In stock, Top prices from 8.70 Euro

Features

• Torsionally stiff and backlash-free
• Wear- and maintenance-free
• Compact design
• Simple, safe and fast assembly
• No damage to the shaft
• With screw lock
• Bright finish
• On request with keyway DIN6885/1
• Temperature range -40°C to +175°C
• Maximum speed up to 8'000 rpm
• Also available in aluminium if required
• Various options, special designs and other dimensions available on request!

Parameter Name	Parameter Value
Type	rigid
Product applications	shafts
Other characteristics	compact
Torque (Nm)	0 - 0
Rotational speed (rpm)	8000 - 8000
