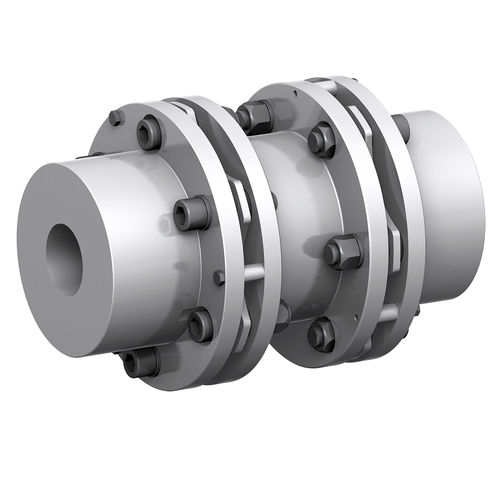

Rigid coupling DISCFLEX DNZ-G

Rigid coupling DISCFLEX DNZ-G

Rigid coupling DISCFLEX DNZ-G

About


DISCFLEX couplings are suitable for a range of industrial applications where torque is transmitted from the input shaft to the output shaft alternately through traction and compression of the flexible element.

DISCFLEX benefits
This VULKAN product offers the following benefits:

High speed and torque transmission
Small sizes
Low weight
Maintenance free
High torsional stiffness
Low axial and radial reaction forces

Alternative to flexible coupling
This is a suitable alternative to flexible couplings whenever the environmental conditions are detrimental to the elastomer. DISCFLEX couplings are suitable for operating temperatures of between -50 and 150 °C and comply with API 610 requirements.



PARAMETERS

Parameter Name Parameter Value
Type
rigid
Product applications
  • for shafts
  • industrial
  • for pumps
  • for mechanical power transmission
  • for blowers
  • for compressors
  • turbine
Other characteristics
  • torque
  • maintenance-free
  • double
  • ATEX
  • high-speed
Torque (Nm)
  • 560 - 560
  • 153 - 153
Rotational speed (rpm)
3100 - 19500
