Material flange:cast iron (GG-25)
Material buffer:NBR
Working temperature:from -30 to +80 °C

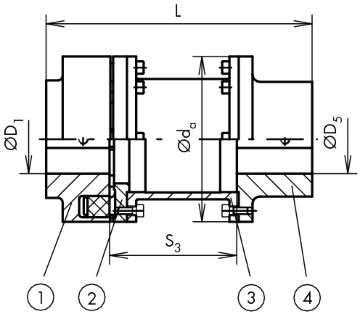

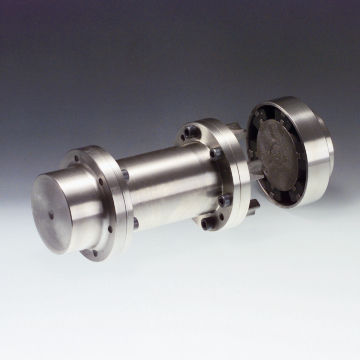

Product description:Torque is transmitted via elastic coupling sets, which are in evenly placed pockets around the periphery of coupling part 1 type H. The corresponding cams of coupling part 7 grip into the intermediate spaces. On the four component version H the intermediate sleeve, part 6, enables removing the thrust bearing with running wheel without removing the motor, e.g.in rotary pump drives
Attention:The coupling parts contain no bores for the shafts
Version:flexible couplings
On request:Coupling part 1 and 5 with bore and groove; material: cast iron with spheroidal graphite (GGG-40); package with high or low elasticity
Note:parts 1, 5, 6, 7
Characteristics:Yields radially, angularly, axially and for spins in both directions of rotation, also in reverse, puncture-proof, dampens oscillations, progressive spring characteristics, small in size, low angular momentum, maintenance free

Parameter Name	Parameter Value
Type	rigid
Product applications	pump motor
Other characteristics	torque
Installation system	flange, sleeve
Torque (Nm)	60 - 360
Rotational speed (rpm)	4900 - 4900
