Material flange:cast iron (GG-25)
Material buffer:NBR
Working temperature:from -30 to +80 °C

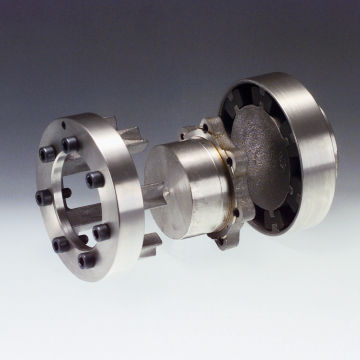

Product description:Torque is transmitted via elastic coupling sets, that are in evenly placed pockets around the periphery of coupling part 1 type A The corresponding cams of coupling part 3 Igrip into the intermediate spaces. On the three-component version A releasing and pulling back part 3 enables the separation of shaft and machine without their axial displacement.
Version:flexible couplings
On request:Coupling part 1 and 2 with bore and groove; material: cast iron with spheroidal graphite (GGG-40); package with high or. low elasticity
Note:parts 1, 2, 3
Characteristics:Yields radially, angularly, axially and for spins in both directions of rotation, also in reverse, puncture-proof, dampens oscillations, progressive spring characteristics, small in size, low angular momentum, maintenance free.

Parameter Name	Parameter Value
Type	rigid
Product applications	for shafts
Other characteristics	torque
Installation system	flange
Torque (Nm)	300 - 300 160 - 160
Rotational speed (rpm)	1700 - 5000
