About

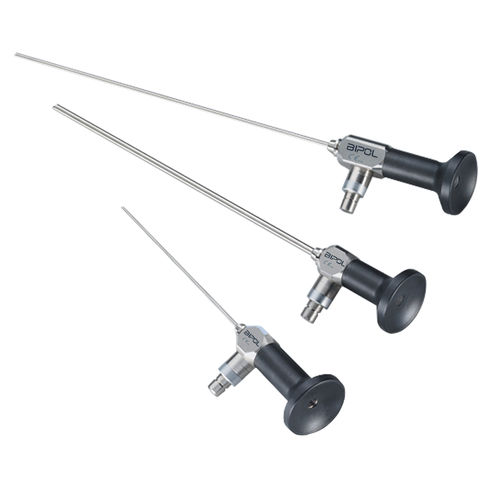

A range of small diameter endoscopes specially developed for video use. Equipped with the SRL optical system, they offer unmatched image quality and wide angle, the perfect tools for quality video inspection.
Recommended for video applications:
• Outer tube, body and connection in stainless steel.
• Standard ISO 32mm ocular.
• SRL lens system for better bending resistance.
• Very important depth of field.
• Clear image from 1mm to infinity.
• Large field of view that allows forward and side vision (SV).
• Resist to oils, water, fuels and industrial solvents.
• Working temperatures: -40°/120°C.
• Resist to 3bar pressure.
Our SV Line is particularly adapted to video applications. See our P1 or Rugged portable video systems for further information.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Construction |
rigid
|
| Applications |
industrial
|
| Other characteristics |
|
| Diameter (mm) |
1.6 - 1.9
|
| Cable length |
Max.: 330 mm(12.99 in)Min.: 45 mm(1.77 in)
|
