Product profile:

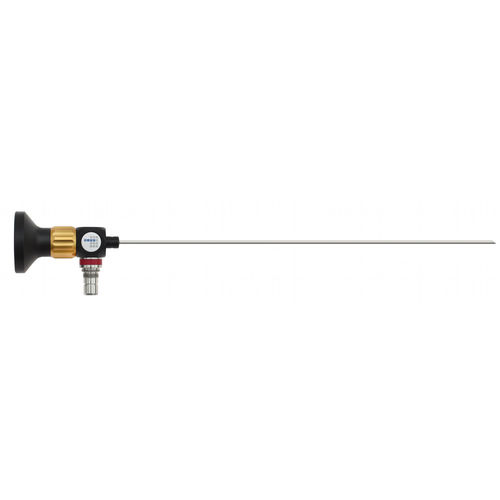

rigid borescope with small outer diameter
available versions: with wide field of view of 70° or with replaceable mirror tubes (70°, 90° and 110°), with or without focussing
different directions of view and working lengths available
made of stainless steel - “made in Germany”

User friendlieness along with the maximal scope of operation:
extra wide field of view 70° (optional)
optimal image quality thanks to focussing (optional)
mirror tubes rotating at 360°
depth of field of 3 - 40 mm (without focussing)
the constant use of sapphire glass increases the application spectrum and extends durability
applicable under extreme conditions in liquids and temperatures from -10°C up to +100°C
fulfils all demands of the digital picture processing due to a high-resolution optical system
the highest compatibility assured by DIN eyepiece and ACMI connection
maintenance and repair friendly

Area of application:
This product line has been developed to meet the requirements of the digital picture processing. With an outer diameter of 2,8 mm this borescope can be used very well
in the precision mechanics and in the electronics. Therefore, it is the perfect choice especially in the quality tests, for example, in machining plants in order to examine
and document material defaults and surface condition.
Thanks to the unrivalled combination of extras in one product the area of application is increased. Moreover, the optional digital picture processing facilitates the
documentation and archiving of examination results enormously.

Parameter Name	Parameter Value
Construction	rigid
Applications	industrial
Diameter (mm)	1.9 - 2.8
