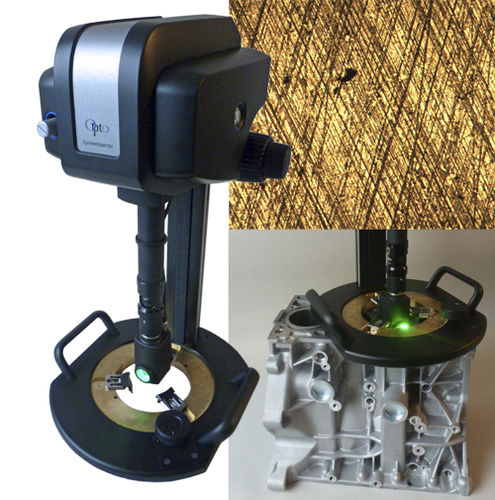

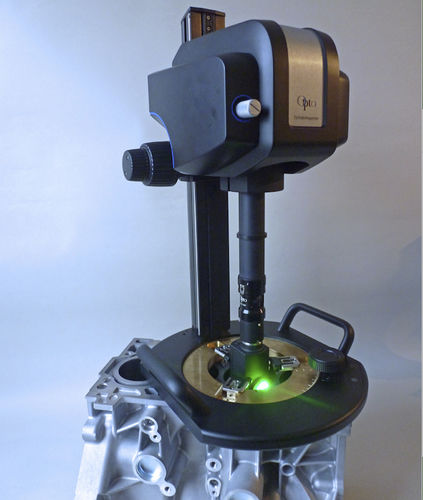

CylinderInspector is an all-optical, non destructive imaging device designed for the analysis of honed cylinder surfaces. It provides non-contact measurement and microscopic inspection of surfaces in aluminum and cast iron.

For over fifteen years, CylinderInspector has been the instrument of choice amongst the world’s leading engine manufacturers, as it enables detailed analysis of metallurgical composition and surface texture of complex honed surfaces.

It offers a full 360-degree rotation view with variable insertion adjustment. Users can inspect the surface at different magnifications with the use of the integrated optical zoom and precision focus mechanism. High precision rotation and vertical positioning mechanisms enables the user to inspect virtually any position or depth within the cylinder.

CylinderInspector features a highly advanced illumination system, featuring a powerful darkfield function, which enables the most complex textural features to be imaged perfectly. The CylinderInspector software interface is programmable and highly customizable.

Available in both 2D and 3D versions, it is able to provide perfect optical inspection of honed surfaces in cast iron and aluminium, as well as the detailed analysis of common compositions and structures.

- Non destructive system for perfect `in-cylinder’ image quality
- Optical zoom system for variable insertion depth adjustment
- Full 360° rotational view with variable insertion depth adjustment
- Able to fit wide variety of cylinder diameters
- Optimized illumination options for different surfaces and structures
- Available with camera or eyepiece depending on model

Parameter Name	Parameter Value
Construction	rigid
Applications	for automobiles
