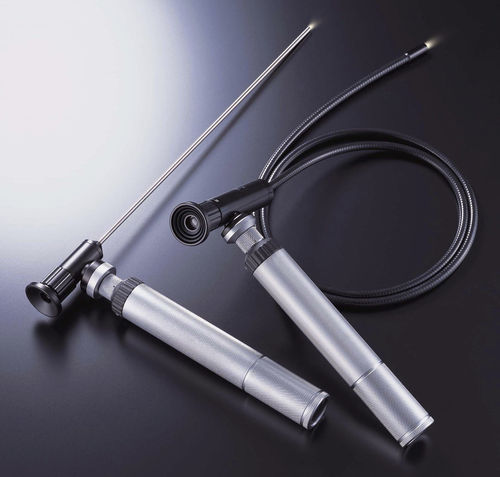

To facilitate visual inspection of minor components, products and units, borescopes with reduced diameters have been developed which are equipped with the excellent "High-Speed" rod lens system . They are characterised by an excellent image reproduction, both in the centre and the peripheral zone of the view field. In this way, they facilitate inspection of small-size details in all industrial applications by rendering high-resolution, super-bright images.

Technical specifications

Jacket tube, shank and fibre-optic light guide entry piece made of stainless steel
Fibre-optic light guide entry piece holder with light condenser, i.e. the light intensity output at the tip is increased by 30%
Adaptable, fibre-optic light guide entry piece (ACM, Wolf); the adapters allow connection of many other makes
DIN ISO eyepiece: 32 mm; this enables easy connection of accessories, such as cameras of most of manufacturers
Three-tube design for the Ø 1.9 mm and 2.7 mm devices; objective lenses protected by three stainless steel tubes (outer, inner and optical tube); easy repair and robust design; for devices up to Ø 1.7 mm two stainless steel tubes
High bending resistance
Special design rod lens system; excellent image brightness and very high resolution
Large focus depth: 1 mm until infinity
Large field of view
The instrument is resistant to fuels, oil and other conventional solvents as well as is water-tight
Operating temperature -40° – +120°
Pressure resistance 3 bar

Parameter Name	Parameter Value
Construction	rigid
Applications	industrial for automobiles engine welding
Other characteristics	portable small-diameter swing prism waterproof high-temperature
Diameter (mm)	1.5 - 10
Cable length	Max.: 10,000 mm(32.81 in)Min.: 100 mm(3.94 in)
