RIGHT ANGLE GEARBOX
Product Description

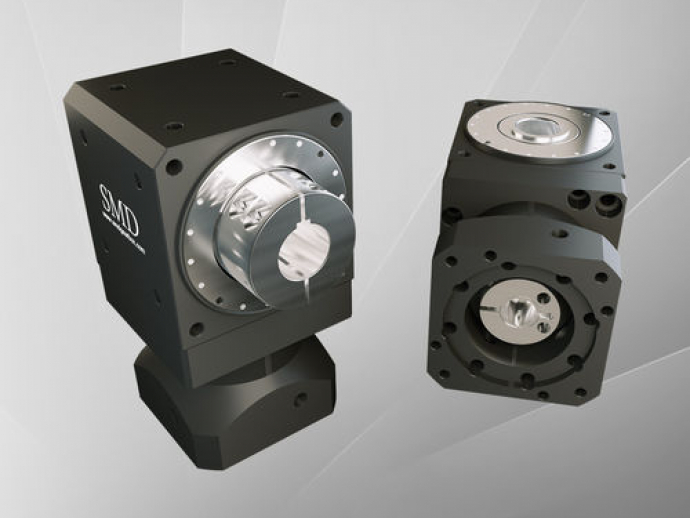

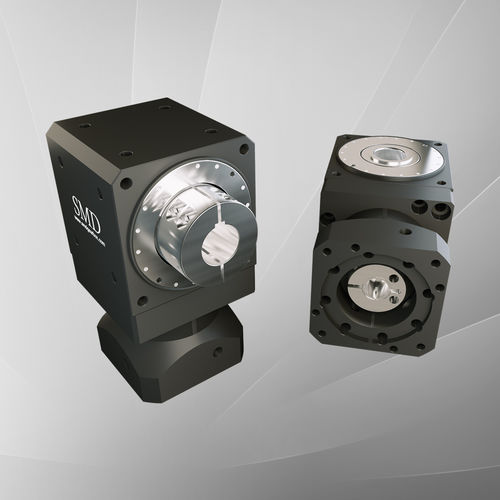

Hollow shaft Type and solid shaft type
Nominal Output Torque : 13Nm to 800Nm
Backlash : 3-5 Arc-min
Available reduction ratio from 1:4 to 1:200
Suitable for low load and intermitted motion.
Servo-motor gearbox
Features
Hollow Shaft and Solid Shaft.
Adjustable backlash and suitable low load and intermitted motion.
Hollow output shaft design for various applications and 5 mounting surfaces for flexible installations.
Arguably the easiest Right-Angle gearhead on the market to geo-metrically integrate into your machine
Rectangular “cube-like” geometry provides for easy fitting into your device. With 5 mounting surfaces,other components can be attached to the SS.

SF suffix indicates solid shaft --the 42 size is available only with ratio 1 and solid output shaft.
SS42SF ratios --L1(1stage): 4,5,7,10; L2 (2stage): 12,15,16,20,21,25,28,30,35,40,49,50,70.
F suffix indicates Hollow shaft is standard. However, "solid output shaft" and "double output shafts" are regular options.
(SS 70 to SS150 ratios --L1(1stage): 6,8,10,14,20 ; L2 (2stage): 18,24,30,32,40,42,50,56,60,70,80,98,100,140,200.Please inquire for any ratio not shown.
At 3 % of rated load.
At a distance of one-half of one coupling length --from end of the coupling.

Parameter Name	Parameter Value
Configuration	right angle
