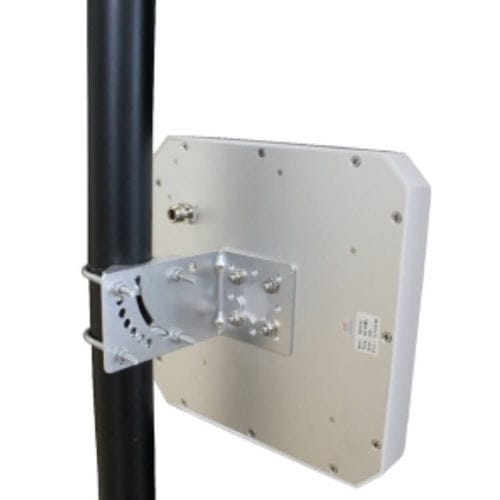

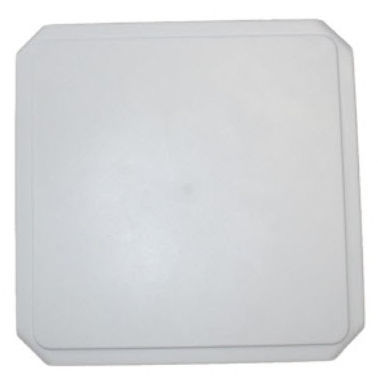

The UHF C9-2626 antenna has a circular polarization and a 9dBi gain.
This white antenna is designed for many applications such as logistics, warehouse management, access security…
The C9-2626 antenna is available in right and left circular polarization
Type -
UHF
Frequency -
EU: 865-869MHz
US: 902-928MHz
Dimensions -
260*260*40mm
Weight -
Net weight: 1,1KG
Gross weight: 1.68kg
Polarization -
Circular right (standard)
Circular left
Gain -
9dBi
Connector -
N-Female
VSWR -
≤ 1.4
Impedence -
50 Ω
Material -
ABS
Protection grade -
IP65
Use -
Outdoor use
Temperature -
-40-70℃
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Network |
|
| Type |
panel
|
| Other characteristics |
|
| Frequency (Hz) |
865000000 - 928000000
|
| Gain (dB) |
9 - 9
|
