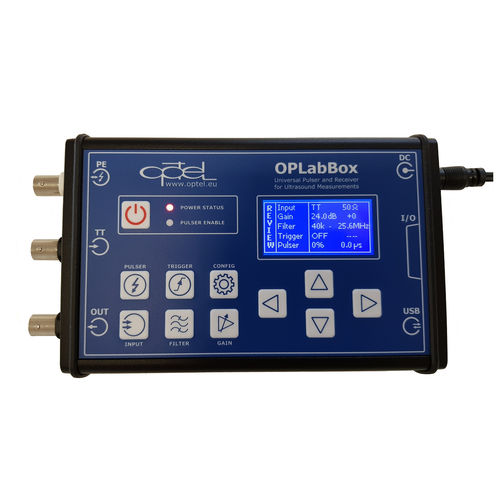

OPLabBox 2.0 is particularly well suited for ultrasonic measurements. Wide bandwidth amplifier with a switched bandpass filter and integrated pulser makes this device suitable for a variety of ultrasonic applications in the industry as well as in the laboratory.

It is designed to work as a self-sufficient scope adapter, however, it can be used as an expansion box to other signal processing devices. Together with our ultrasonic testing devices (OPCARD or OPBOX) enables to implement a complete ultrasonic system with full hardware and software support.

OPLabBox is particularly well suited for ultrasonic measurements. Wide bandwidth amplifier with switched bandpass filter and integrated pulser makes these device suitable for variety of ultrasonic applications. It is designed to work as an self sufficient scope adapter, however it can be used as expansion box to other signal processing devices. Together with our ultrasonic testing devices (OPCARD or OPBOX) enables to implement complete ultrasonic system with full hardware and software support.

Specifications:

Power supply:
- Supply Voltage: 12V DC (10.5-15V)

- Power: Typ 2.5W, max 6W

Size (LxWxD):
200x110x43 [mm] 7.9x4.3x1.7 [inch]

Analog parameters:

- Input channels: 2 (switched): send & receive and receive
- Input range: 550mVpp
- Input impedance: 50 / 200 ohms
- Bandwidth [-3dB]: 40kHz to 25MHz
- High Pass Filter [Hz] (switched): 40k, 80k, 160k, 320k, 640k, 1.25M, 2.5M, 5M
- Low Pass Filter [Hz] (switched): 200k, 400k, 800k, 1.6M, 3.2M, 6.4M, 12.5M, 25M
- Input amplifier gain: 104dB total gain range: -10 to 70dB step 0.1dB, +0 or +24dB switched post amplifier.
- Output range: 2.5Vpp

Parameter Name	Parameter Value
Network	RF
Applications	telemetry
Number of channels	2-channel
Other characteristics	ultrasonic
