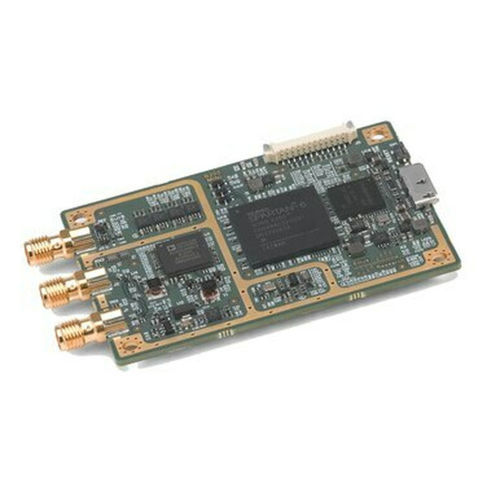

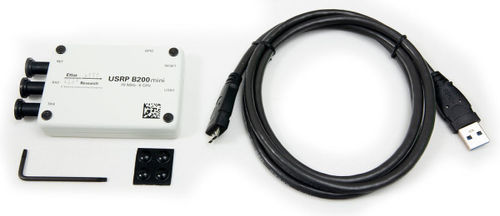

With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 XC6SLX75 FPGA, Ettus USRP B200mini is ideal for both hobbyist and OEM applications. Experiment with the USRP B200mini across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community.

The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is buspowered by a high-speed USB 3.0 connection for streaming data to the host omputer. The USRP B200mini also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.

UHD provides both a C/C++ and Python API and offers cross-platform support for multiple industry standard development environments and frameworks, including RFNoC, GNU Radio, LabVIEW and Matlab/Simulink. And to ensure you have no restrictions on how you use UHD, it is available on Linux, Windows, and Mac OS.

Parameter Name	Parameter Value
Network	RF FM USB WiFi GPS
Applications	data transmission
Other characteristics	high-speed analog IC programmable
