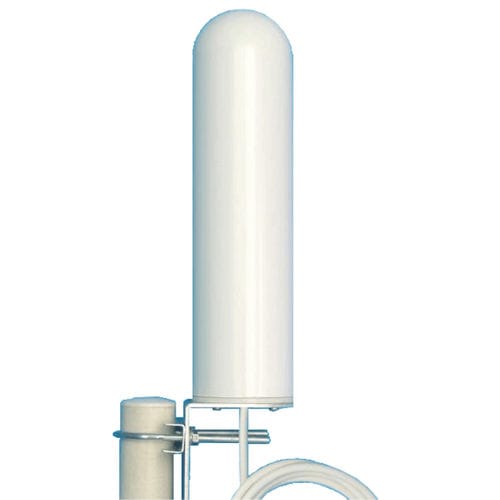

The KET-AGA-005.10 is a high gain (5 dbi) Multi-band Omnidirectional Antenna with a wide frequency band (698~960/1710~2700), low standing wave, strong anti-interference capability, ideal for 3G (GSM), 4G (LTE), CDMA, PCS and W-LAN systems.
Thanks to its high degree of protection, IP65, can be installed in both industrial and outdoor environments.
It is equipped with a 10 m cable with SMA-m connector.

ANTENNA SPECIFICATIONS
Protection Range - IP65
Operative Temperature - -40 ÷ +60 °C
Dimensions - Ø 60 mm; W 230 mm
Connections - 10 m cable
Connectors types - SMA male
Radio Frequency - 698~960/1710~2700 MHz

Parameter Name	Parameter Value
Network	RF LTE GSM 4G LTE WLAN CDMA
Type	omnidirectional
Other characteristics	outdoor high-gain multi-band IP65
Frequency (Hz)	698000000 - 2700000000
Gain (dB)	5 - 5
