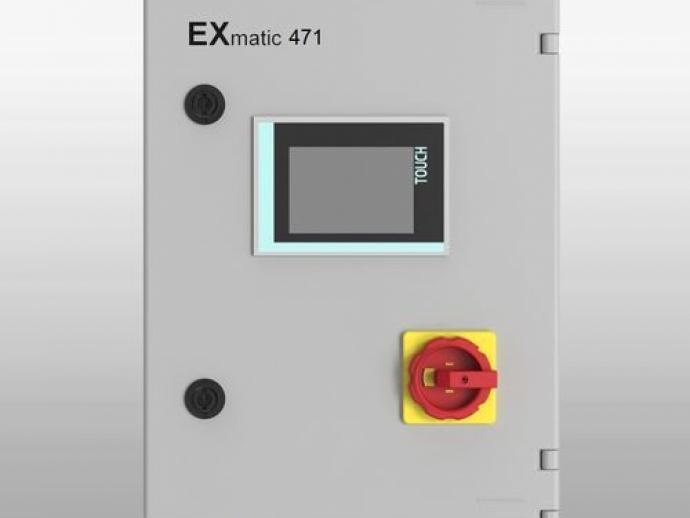

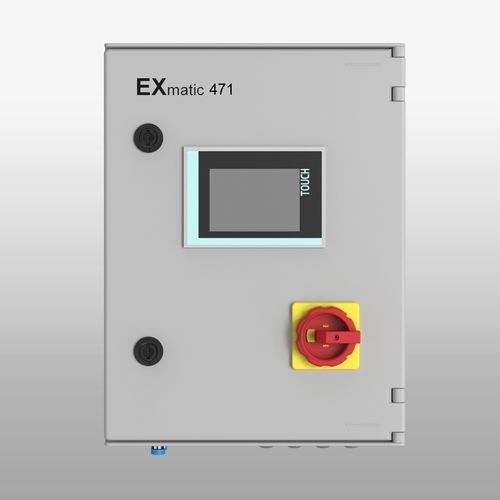

EXmatic 471 electropneumatic, programmable
EXmatic 471 is an electro-pneumatic control unit for fully automatic control of pneumatic retractable housings of EXtract 8XX series. The combination of the control unit EXmatic 471 and a retractable probe housing of EXtract 8XX series ensures safe access to a sensor by driving it easily out of the process into the maintenance position and clean them fully-automatic with different rinsing solutions or even to take out the sensor for inspection, calibration or exchange. The cleaning intervals as well as additional functions can be programmed very easily. Output contacts can be connected to a DCS for external start and monitoring. It is an open and autonomous system and does not depend on any specific sensor transmitter.
Your advantages
• Full automatic measuring points
• High extension of sensor-lifetime and reducing of servicing efforts
• Open system - operates with any kind of transmitter
• Output signals for connecting with PCS
• Three different cleaning solutions usable
• Sealing water function
• Pre- and post-cleaning function
• Integrated connecting hose for plug and play operation
• Safe removal of the sensor under current process conditions
Specifications
• Voltage supply: 24V DC / 30VA
• Air supply: compressed air 5-6bar
• Input for ext. trigger: 24V DC internal power supply for potentialfree contact
• Current consumption: 1,6 A max
• Output ext. relays: 24V DC max. 250mA
• Output clean. pumps: 24V DC max. 250mA
• Output alarm contacts: 24V DC max. 100mA
• Housing material: glass-reinforced plastic or stainless steel
• Housing dimensions: 300 x 400 x 200mm
• Ambient temperature: 0…+55°C
• Type of protection: IP54
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for retractable probe housing
|
