Resistive touch screen HMI TP-5710-17

About

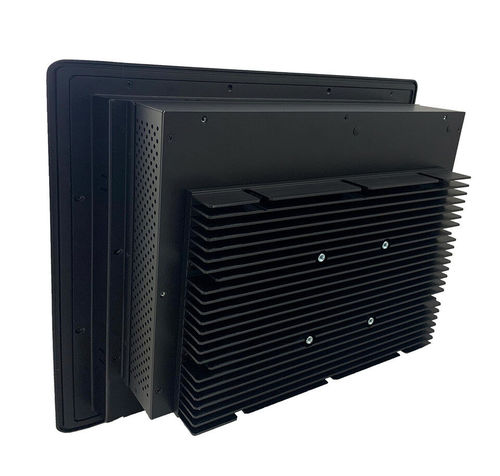

The TP-5710-17 is ideal for industrial environments where high computing power is needed. This panel PC comes equipped with a high TDP processor that we designed into a fanless chassis, encouraging more computing power while still running efficiently and quietly. The 17” design can come in either resistive or PCap touchscreens, with an IP66 rated front bezel to protect from spray or splashes. This is a modular Panel PC where the front monitor can be taken off for easy maintenance and cleaning. The Intel 6-Core i5 CPU allows for Windows 11 capabilities and improves the efficiency of your business with faster processing power.

Key Highlights

Fanless Cooling System
Multiple inputs and outputs including 4x USB 3.1, 3x COM, 2x Lan, and 3x Display port 1.2
Windows 11 Capabilities

The TP-5710-17 Industrial HMI features an Intel 6-Core i5 CPU that is capable of running Windows 11. Its fanless design and high computing power makes it ideal for industrial environments where machine learning, AI, or 3D modeling are used.



PARAMETERS

Parameter Name Parameter Value
Interface
  • resistive touch screen
  • projected capacitive touchscreen
  • multitouch screen
Mounting
  • panel-mount
  • VESA mounting
Resolution
1280 x 1024
Processor
  • 9th Generation Intel® Core™
  • Intel® Core™ i5-9500TE
Other characteristics
  • fanless
  • USB
  • RS232
  • RS422/RS485
  • modular
  • with Windows® interface
  • Windows 10 IoT
  • IP66
Applications
  • industrial
  • machine
