About
-1 × Ethernet, 4 × serial, 1 × USB as standard
-Operating temperature -10° to +50° C
-CE, FCC, UL (pending) approvals
Mechanical
Mechanical size - 173 x 109 x 37mm
1million finger touch operations
Cut-out size - 161 x 93mm
Weight - 0.32 kg
Housing material - Plastic (PC+ABS), Gray
Buzzer - No
LED - No
Power
Input voltage - 24 V DC (18 to 32 VDC) CE: The power supply has to be conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply has to be conform with the requirements for class II power supplies.
Power consumption (max) - 4.8 W
Input fuse - Internal DC fuse
CPU - ARM Cortex A8 600MHz
RAM - 512 MB
FLASH - 2 GB
Display
Backlight life time - 20000 hours
Backlight brightness - 250 cd/m²
Backlight dimming - Industrial Dimming
Digtal IO
Digital output - No
Serial communication
Number of serial ports - 1port9pinDsub, 1port3pinScrew
Serial port 1 - RS 232 (RTS/CTS)
Serial port 2 - RS422/485
Serial port 3 - RS 485
Serial port 6 - RS 485

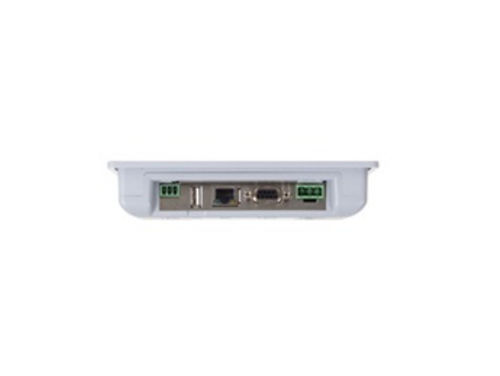

Ethernet communication
Number of Ethernet ports - 1
Ethernet port 1 - 1x10/100 Base-T (shielded RJ45)
Expansion interface
Expansion port - No
SD card - No
USB - 1
Environmental
Operating temperature - -10°C to +50°C
Storage temperature - -20°C to +60°C
Shock - 15g, half-sine, 11ms according to IEC60068-2-27
Vibration - 1g, according to IEC 60068-2-6, Test Fc
Sealing front - IP65, NEMA 4X/ 12 and UL 50E Type 4X/ 12
Sealing back - IP20
Humidity - 5% – 85% non-condensed
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
resistive touch screen
|
| Mounting |
panel-mount
|
| Resolution |
800 x 480
|
| Processor |
ARM Cortex-A8
|
| Other characteristics |
|
| Applications |
industrial
|
