About

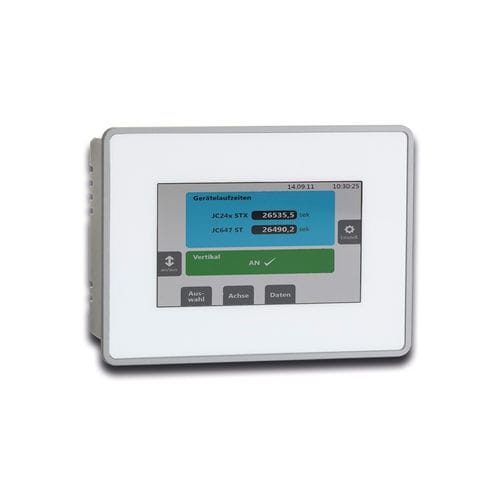

Besides its excellent performance, the HMI JetView 1004 impresses by its compact design and front panel sealing (up to IP66). This device can be easily integrated into existing networks thanks to its two Ethernet ports with integrated switch.
Brightness - 150 cd/m²
Front - Plastics
Function keys - -
Softkeys - -
Operating system - Windows® CE 6.0 R3
Internal disk drives - -
Ports and interfaces - 2x Ethernet 10/100 Mbits with integrated switch function,1x USB, 1x multi-standard serial port, 1x SD card slot
Processor - ARM Cortex A8
Clock frequency - 500 MHz
Memory - 256 MB DDR, 128 MB flash
Operating voltage - DC 24 V (DC 18 ... 30 V), 0.55 A at DC 24 V
Operating temperature - 0 °C ... 50 °C
Storage temperature - -20 ... +70 °C
Degree of protection - IP65 (front panel), IP20 (rear panel)
Enclosure material - Aluminum
Weight - Approx. 1.0 kg
Dimensions (W x H x D) - 147 x 107 x 60 mm
Certifications - CE
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
resistive touch screen
|
| Mounting |
panel-mount
|
| Resolution |
480 x 272
|
| Processor |
ARM Cortex-A8
|
| Other characteristics |
|
| Applications |
enclosure
|
