About
Master display with resistive touchscreen
• Operating system Windows CE 5.0; can optionally be used with CODESYS
• Robust technology for harsh environments up to 15 g (shock)
• Low power consumption
• Easy to operate via resistive touchscreen
• With integrated SD card slot
• Certified for shipbuilding industry and offshore applications by BV, DNV, GL, LR
Description

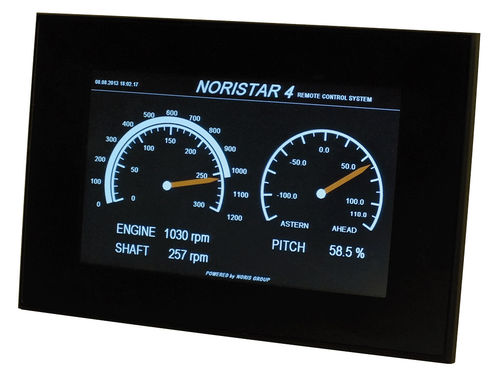

The NORISYS 4 VMP70 is a 7" (17.78 cm) master display, based on LED technology and with a resistive touchscreen. Equipped with a 400 MHz 32-bit ARM processor, an internal 64 MB DRAM and 64 MB flash memory, it is ideally suited for graphically representing automation processes, e.g. with CODESYS. The necessary data can be easily transferred via the integrated SD card slot or the USB port. A Windows® CE 5.0 platform is used as the operating system and, thanks to its class approvals, this product is ideal for applications in shipbuilding, such as in the NORISTAR remote control system, in the NORIMOS integrated alarm, monitoring and control system (IAMCS) or in other maritime automation systems.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
resistive touch screen
|
| Applications |
|
