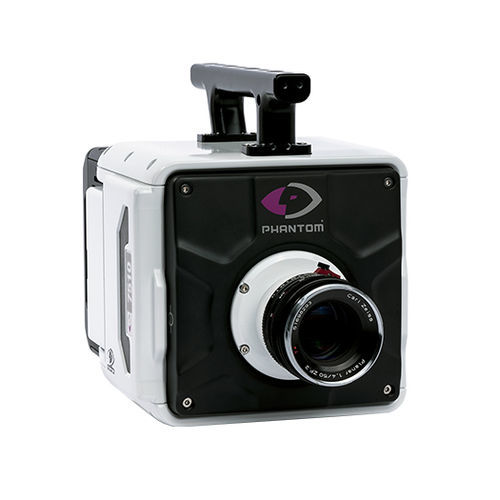

The Phantom TMX 7510 is designed for true high-speed performance. The back side illuminated (BSI) high-speed camera sensor delivers unprecedented resolution and speed combinations. Its focus on data management makes work flow easy.

The Phantom TMX 7510 is the world's first high-speed camera to utilize back side illumination. Implementing this technology has allowed Vision Research engineers to develop a custom sensor capable of unprecedented speeds without sacrificing the image quality that Phantom cameras are known for.

BSI technology provides increased processing efficiency, allowing TMX cameras to maintain their high throughput levels even as frame rates increase. The TMX 7510 has 75 Gigapixel throughput which can provide over 76,000 fps at a full 1 Mpx resolution of 1280 x 800. At reduced resolutions the camera will record at over 770,000 fps in standard mode and up to 1.75M fps and 95ns in with the FAST mode. For an in-depth look at how this technology has revolutionized high-speed imaging read our whitepaper on BSI Sensor Technology.

One truth of high-speed imaging that never changes is that, 'with increased speeds comes the need for increased light'. The unique back side illuminated sensor found in the Phantom TMX 7510 deals with this issue by locating the metal parts of a traditional sensor that interfere with incident light to the photodiode to the back of the sensor. Moving those key elements to the back of the sensor allows even more light to reach each pixel, improving light sensitivity and QE.

Parameter Name	Parameter Value
Applications	industrial for scientific applications for the automotive industry for research and development for military applications
Technology	digital
Spectrum	full-color, monochrome
Sensor	CMOS
Interface	gigabit Ethernet
Resolution level	1280 x 800
Resolution	1 Mpx
Other characteristics	high-speed with global shutter high-performance
