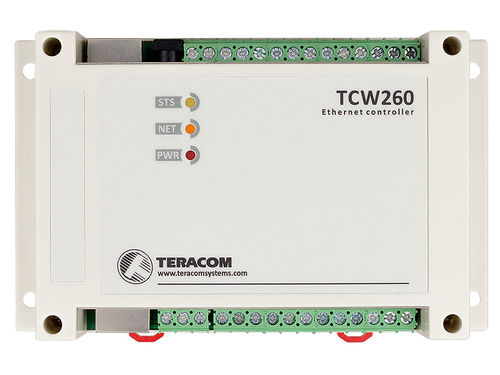

TCW260 is an energy monitoring module with galvanically isolated ports and Ethernet connectivity.

Energy monitoring module TCW260 supports galvanic isolated digital inputs, analog inputs, and RS-485 interface.

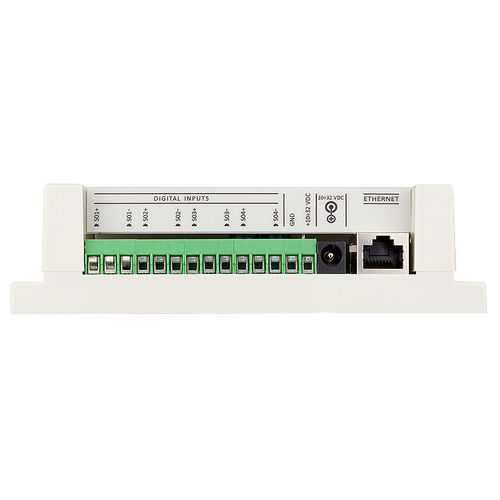

All 4 digital inputs are S0 hardware compatible. They can be used to support up to 4 energy meters with S0 pulse outputs. The digital inputs can also support general dry contact output (ON/OFF) sensors.

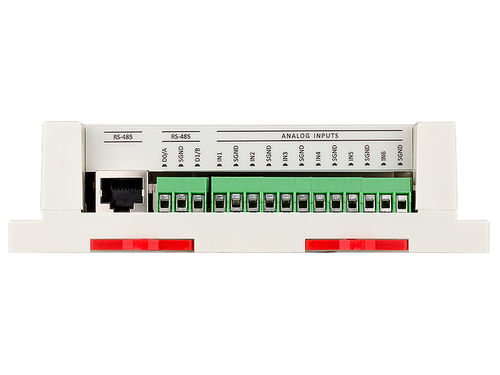

The analog inputs can be used either in the current loop (0/20mA) or voltage (0/10V) mode. They can be connected to voltage and current transducers with suitable analog outputs.

MODBUS RTU protocol is realized over the hardware interface RS-485. The energy monitoring module supports up to 24 registers/devices.

Up to 24 channels for voltage/current or energy monitoring;
Up to 24 categorized alarms with flexible setup;
Graphs for monitored channels/alarms directly on the browser;
4 isolated digital inputs with S0 interface (EN62053-31) compatibility;
ON/OFF and counter modes for the digital inputs;
6 isolated analog inputs with 0/20mA or 0/10V modes;
RS-485 isolated interface for up to 24 MODBUS RTU registers;
Password protected WEB based configuration and control;
Data logger for 70000 records;
NTP support;
Periodical HTTP Post with XML/JSON files for client-server systems;
HTTP API commands;
SNMP v.2 support;
Dynamic DNS support of DynDNS, No-IP, and DNS-O-Matic;
Backup/Restore for easy device settings multiplications;
Remote firmware update over the WEB interface.

Parameter Name	Parameter Value
Type	current
Applications	device server
Interface	Modbus, Ethernet, RS-485 Modbus Ethernet RS-485
Other characteristics	digital remote
